RX75 ROBOTIC ARM

HUMANOID WRIST · 2 VARIANTS · 5 KG PAYLOAD · 709–732 MM REACH

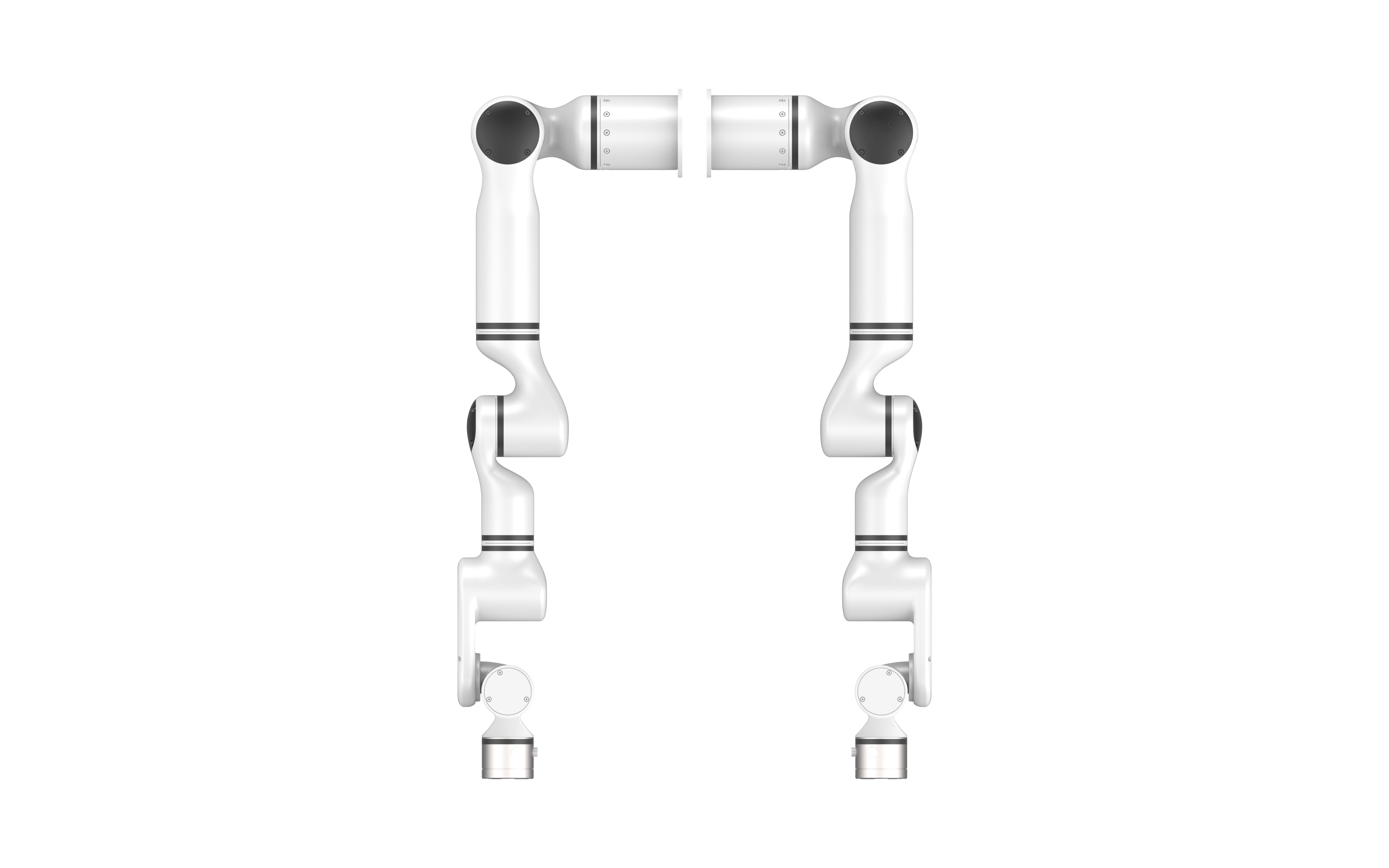

RX75 Standard Version
STANDARD VERSION
RX75-STD

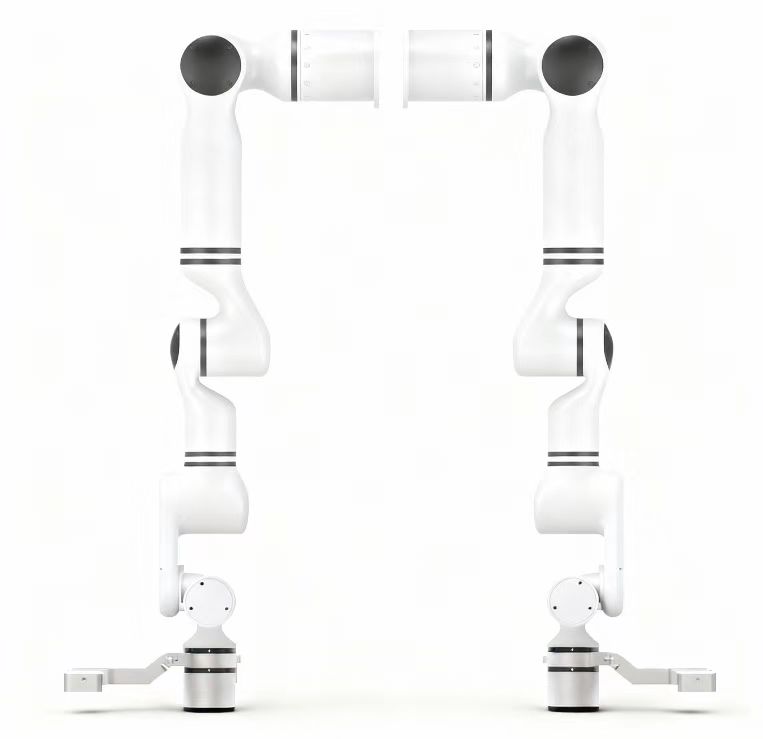

RX75 Vision Version
VISION VERSION
RX75-VISION · D405
STANDARD VERSION · DETAIL VIEWS

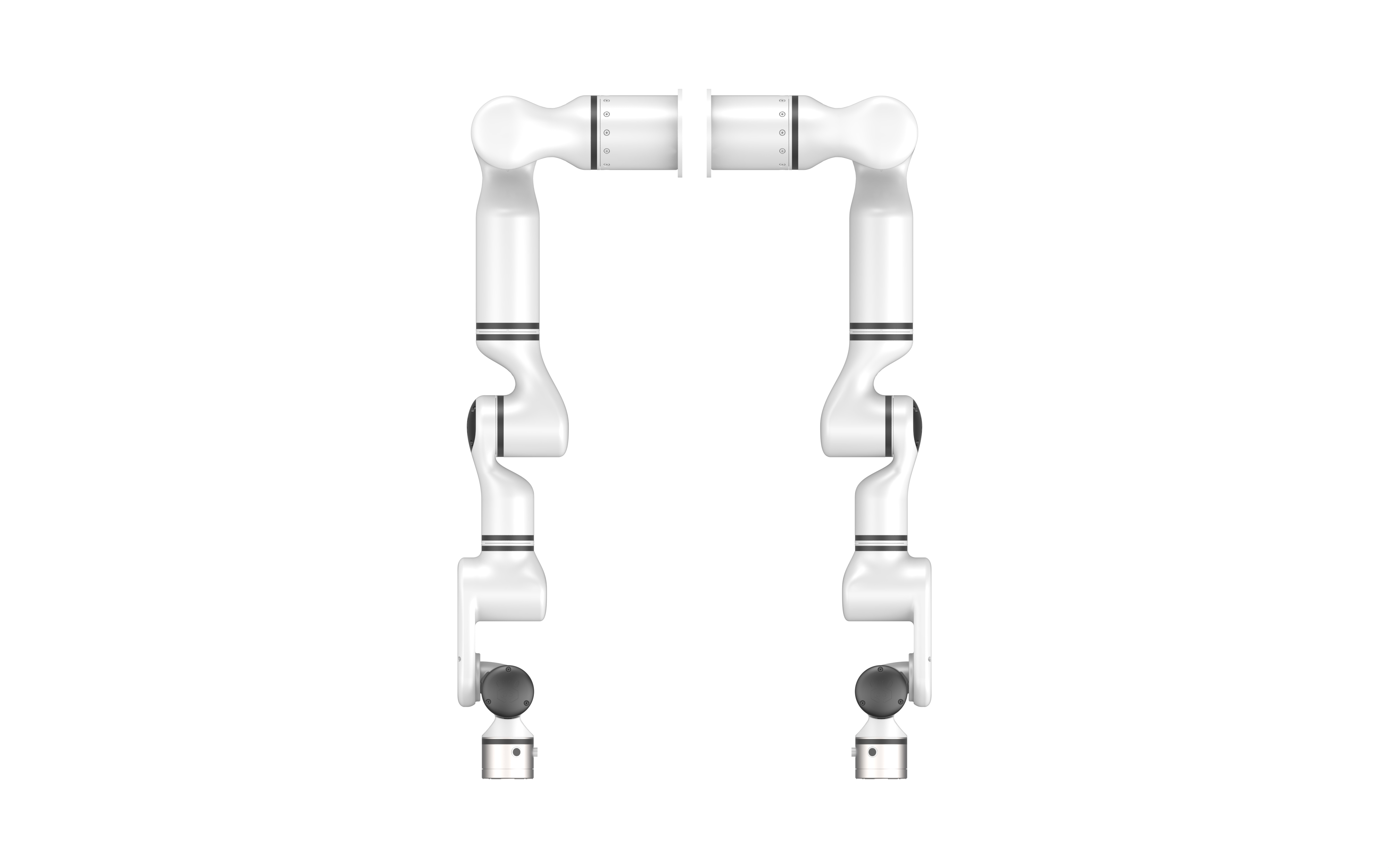

RX75 Standard - Angle 1
STD-02

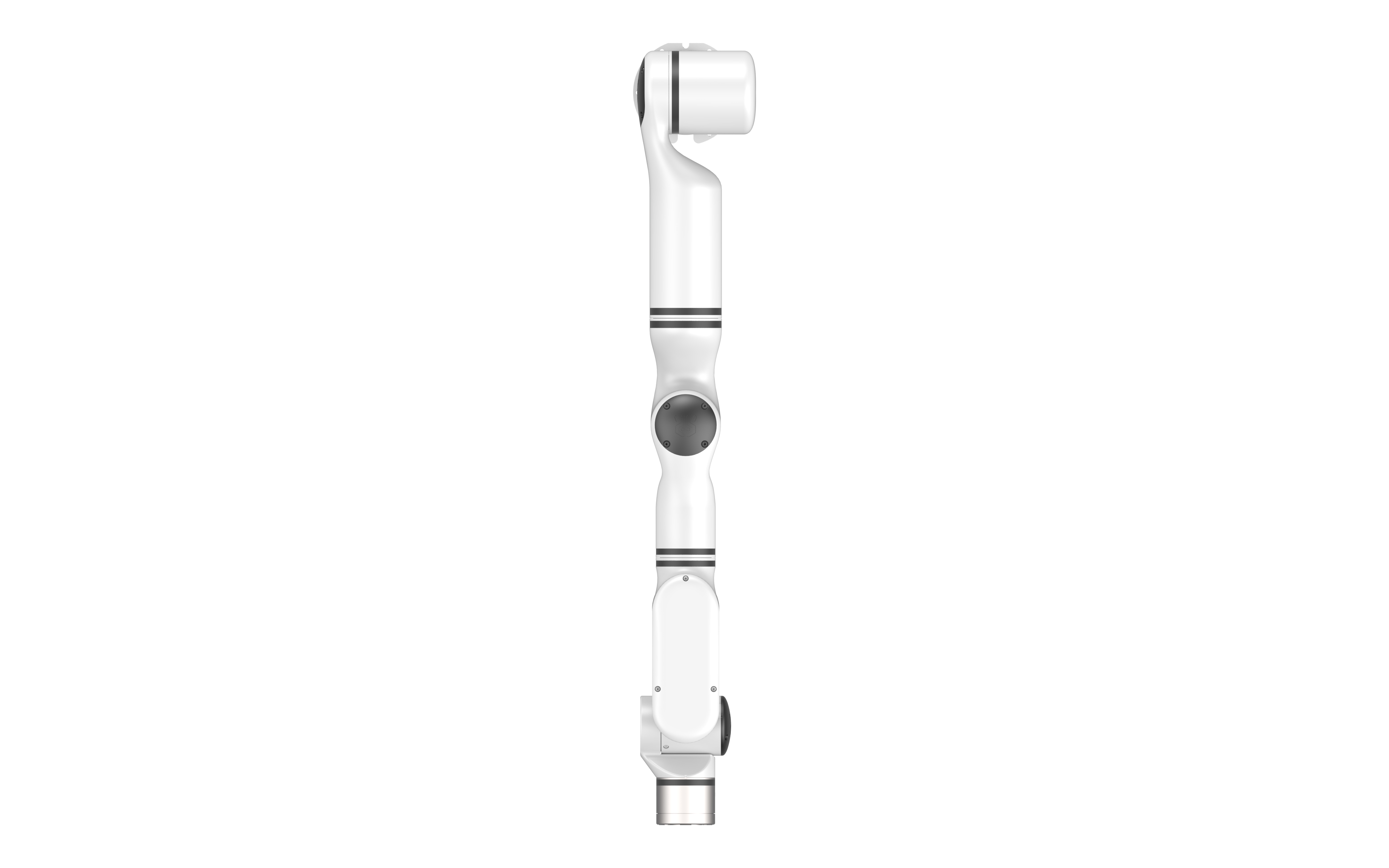

RX75 Standard - Angle 2
STD-03

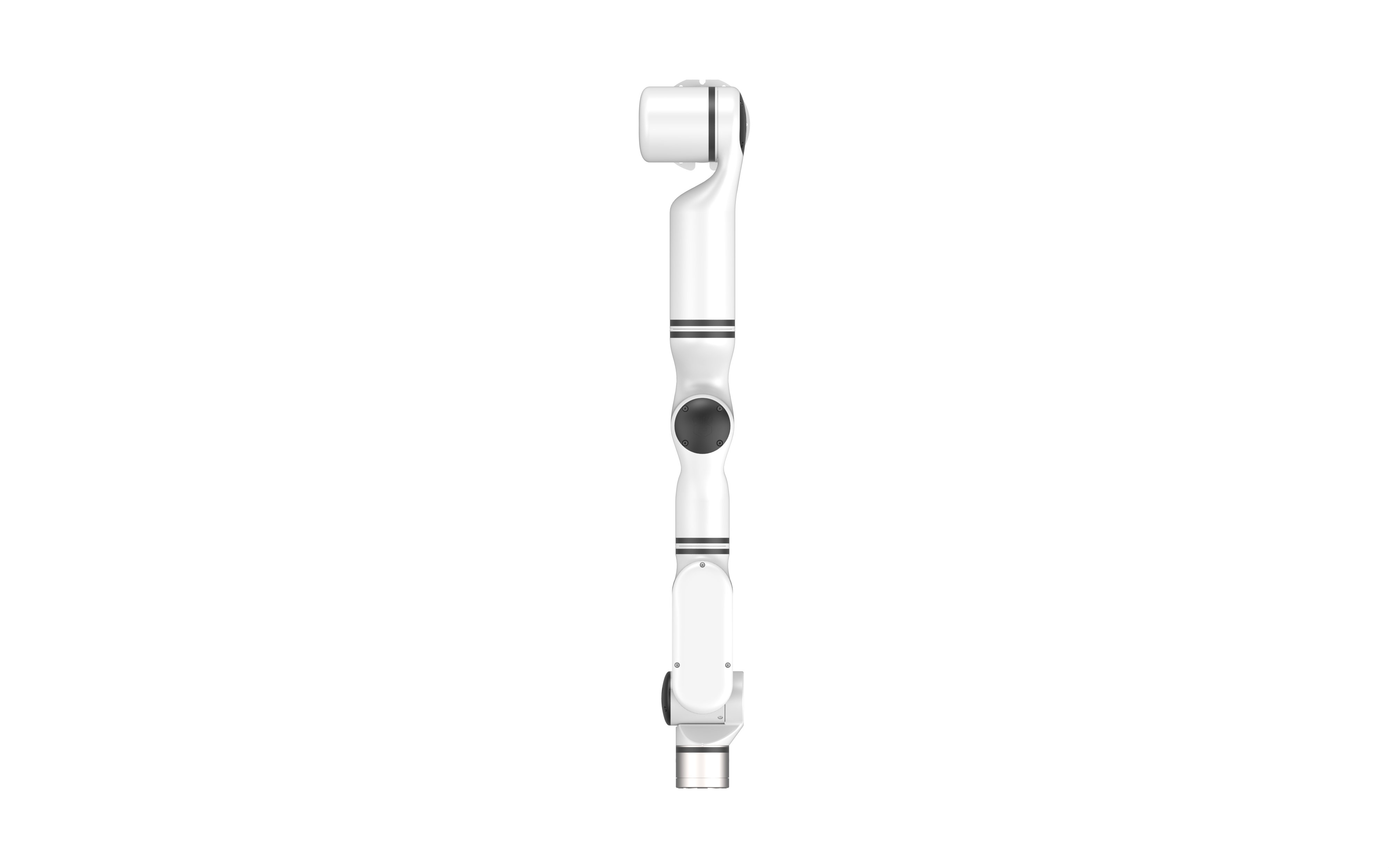

RX75 Standard - Angle 3
STD-04

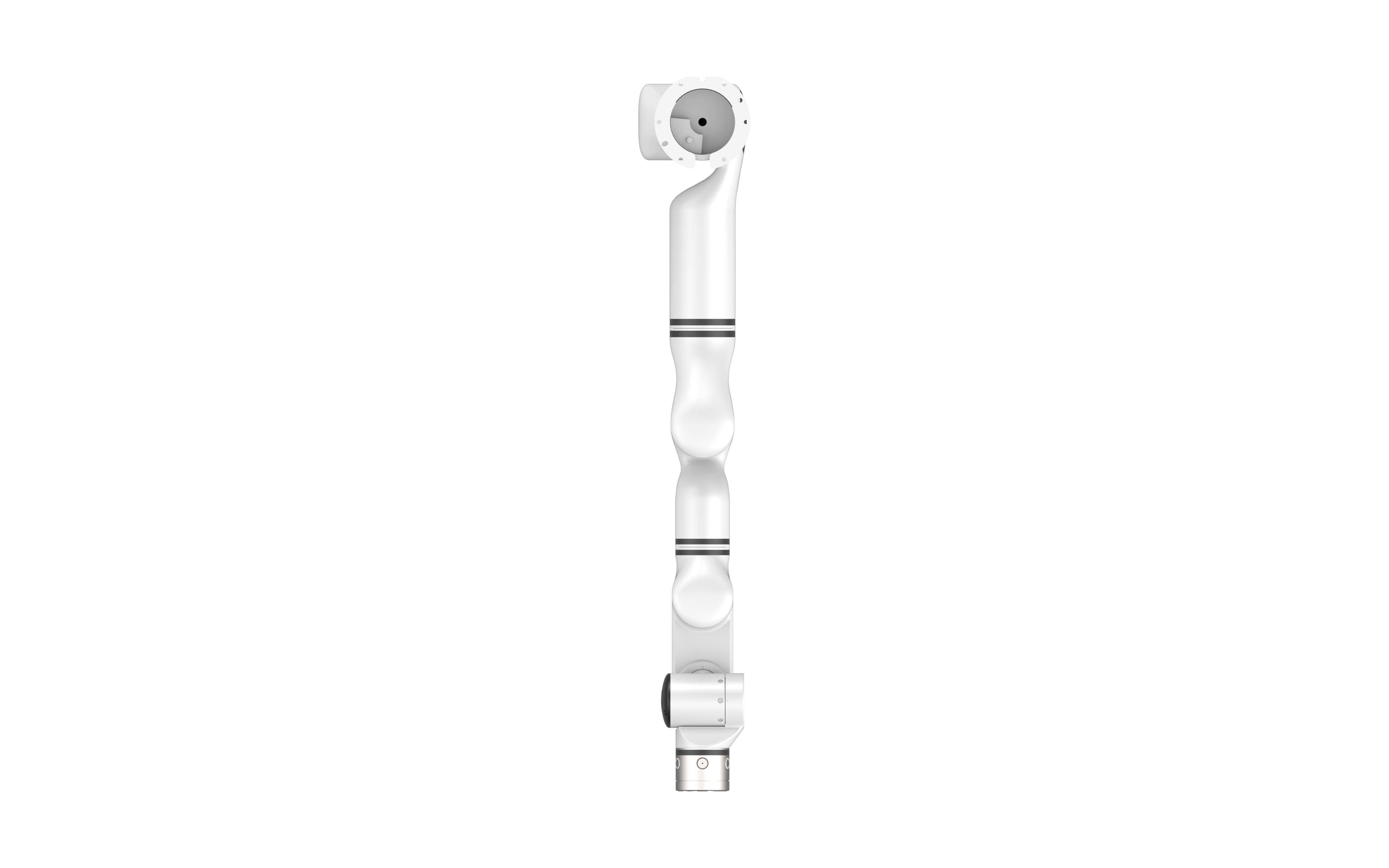

RX75 Standard - Angle 4
STD-05

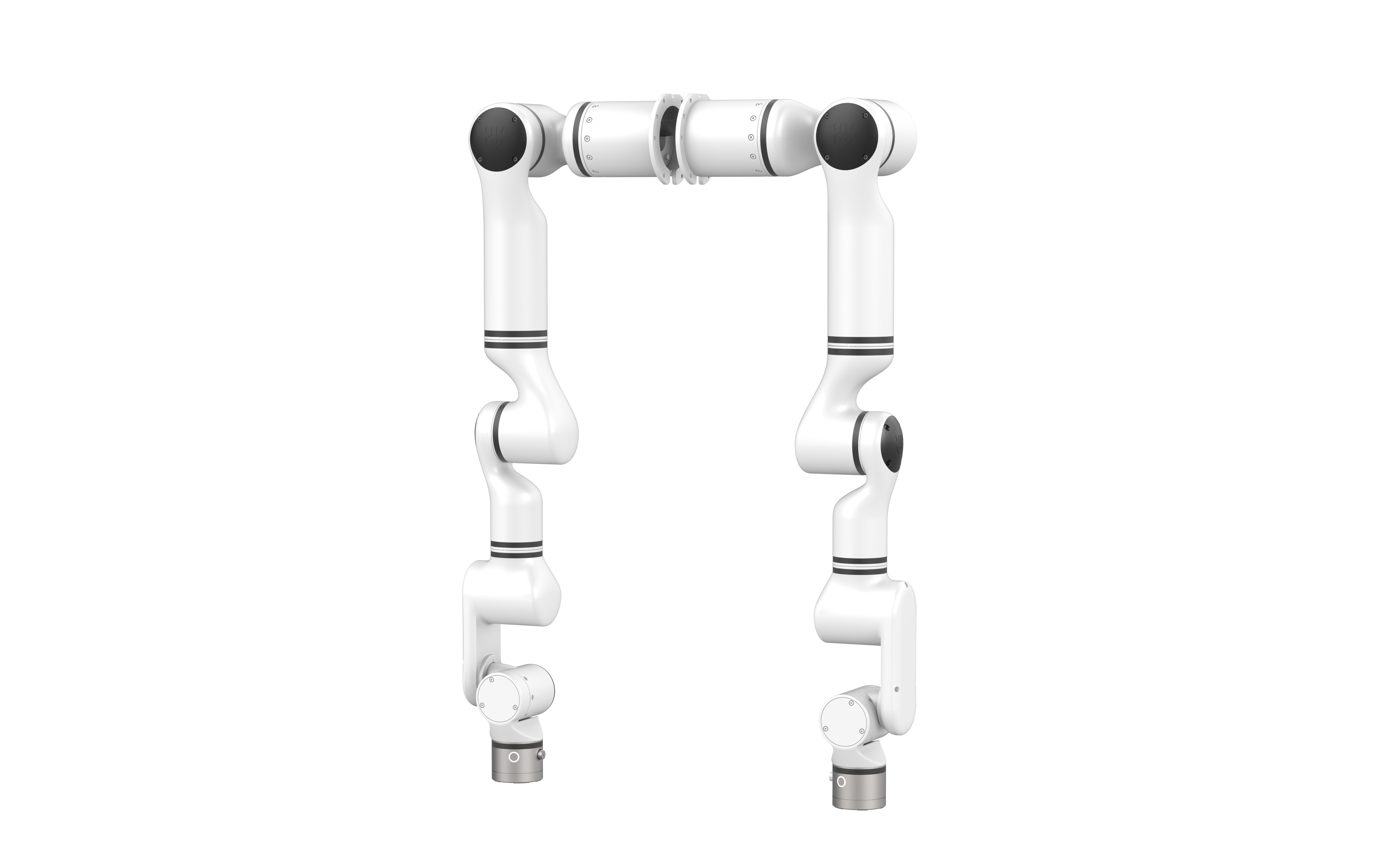

RX75 Standard - Angle 5
STD-06

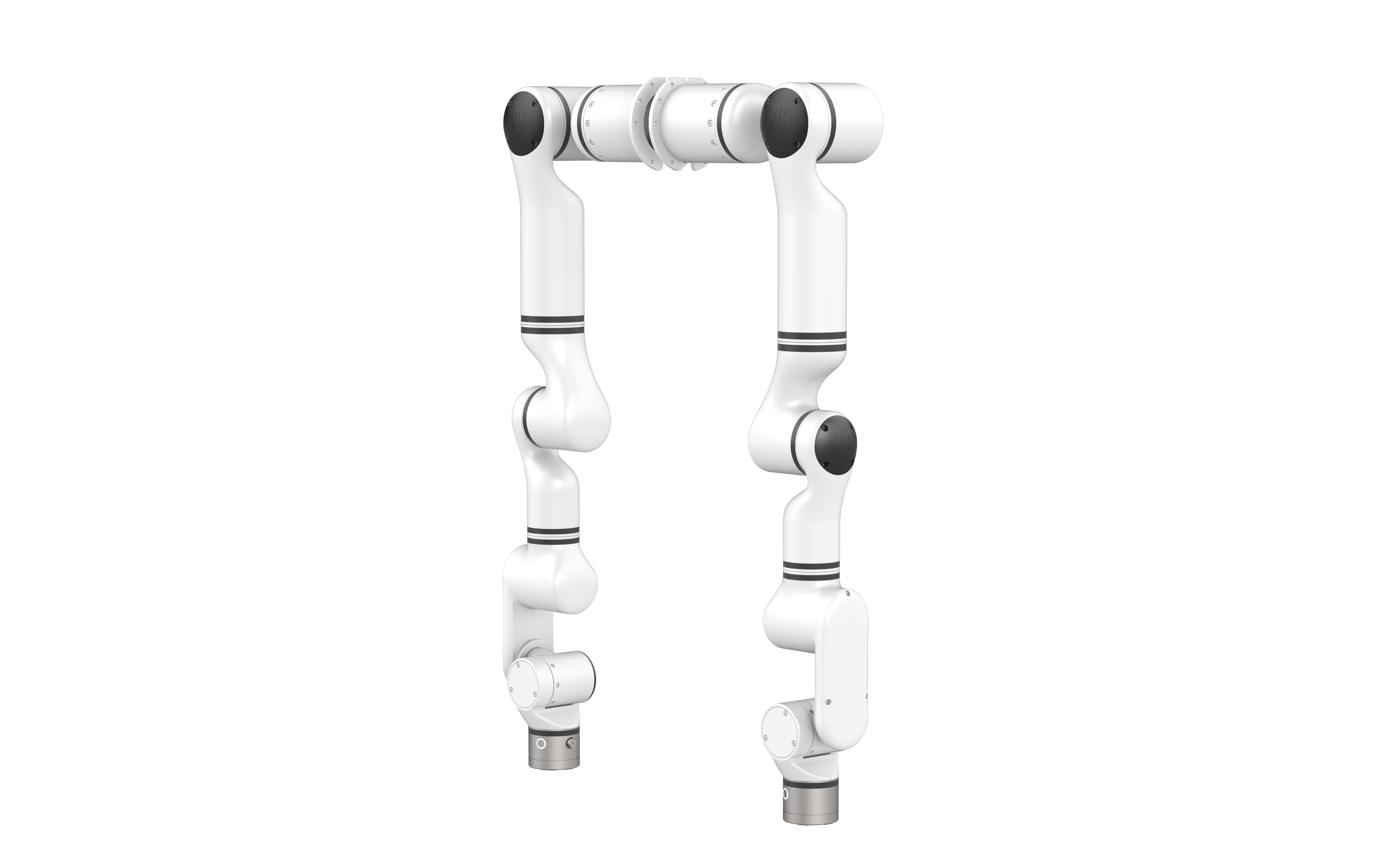

RX75 Standard - Angle 6
STD-07

Core Engineering Advantages

front_hand

7-DOF Humanoid Wrist

Humanoid configuration mirrors natural human arm motion for intuitive dual-arm collaborative operations.

sensors

Integrated Six-Axis Force

Built-in 200N/7N·m six-axis force/torque sensor with 0.5%FS accuracy on both versions.

visibility

Vision-Ready Platform

Vision version integrates Intel RealSense D405 depth camera at end-effector for intelligent perception.

scale

Ultra-Lightweight

Only 8.9 kg net weight delivers exceptional 5 kg payload capacity with humanoid 7-DOF flexibility.

group_work

Dual-Arm Ready

Designed for side-mounted dual-arm collaboration, widely applicable in retail, food service, warehousing, and medical.

Technical Specifications

PARAMETER STANDARD VERSION VISION VERSION
Degrees of Freedom 7 7
Configuration Humanoid Humanoid
Joint Brake Type Mech J1-4 / Spring J5-7 Mech J1-4 / Spring J5-7
Working Radius 709 mm 732 mm
Payload 5 kg 5 kg
Net Weight 8.9 kg 8.9 kg
Repeatability ±0.1 mm ±0.2 mm
TCP Linear Speed ≤1.8 m/s ≤2 m/s
Typical Power ≤200 W ≤200 W
Power Supply DC 20~30V DC 20~30V
End-Effector Camera — D405
Operating Temperature 0–45°C 0–45°C
Six-Axis Force Range 200N / 7N·m 200N / 7N·m
Six-Axis Force Accuracy 0.5%FS 0.5%FS
Material Aluminum Alloy / ABS Aluminum Alloy / ABS
