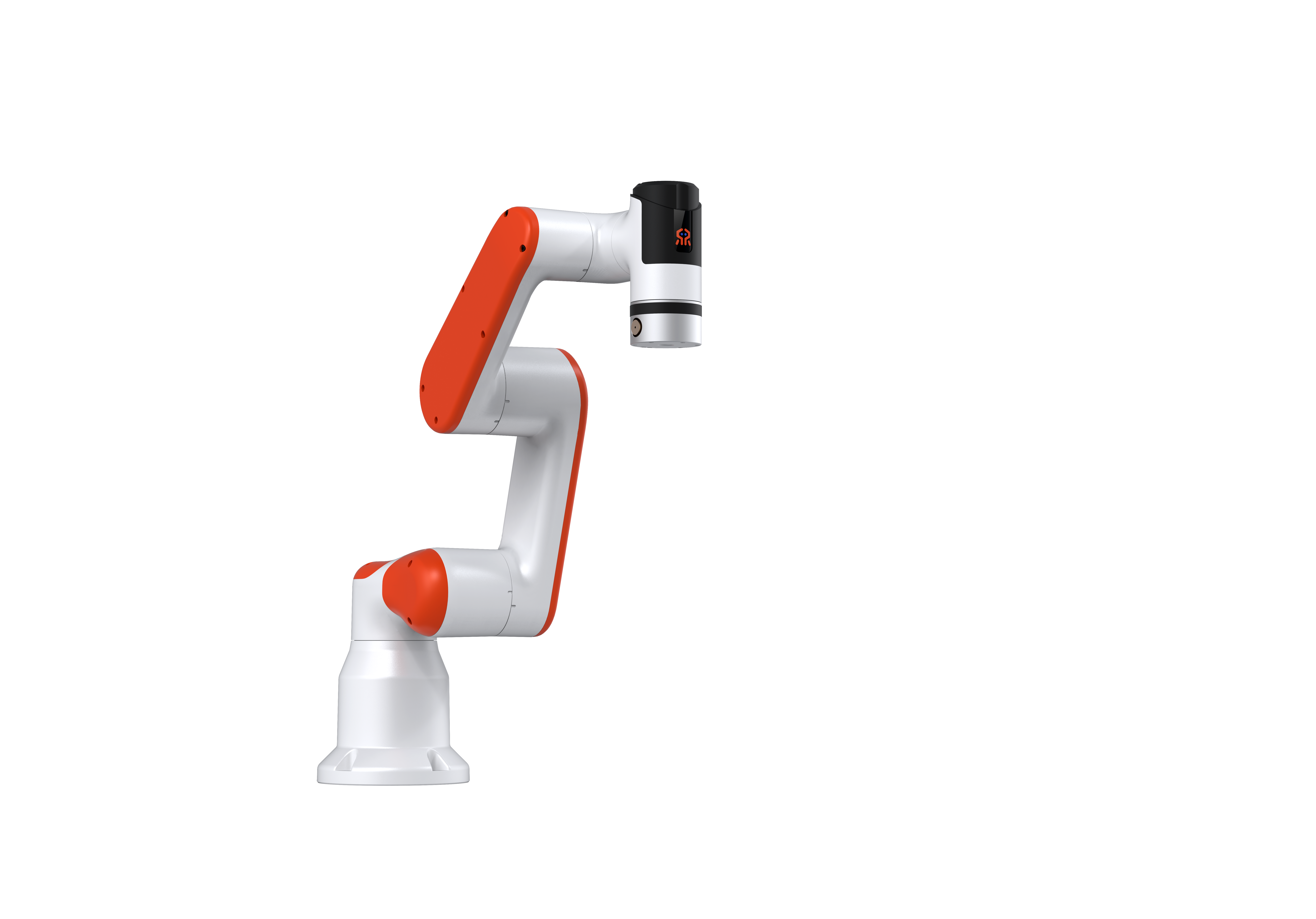

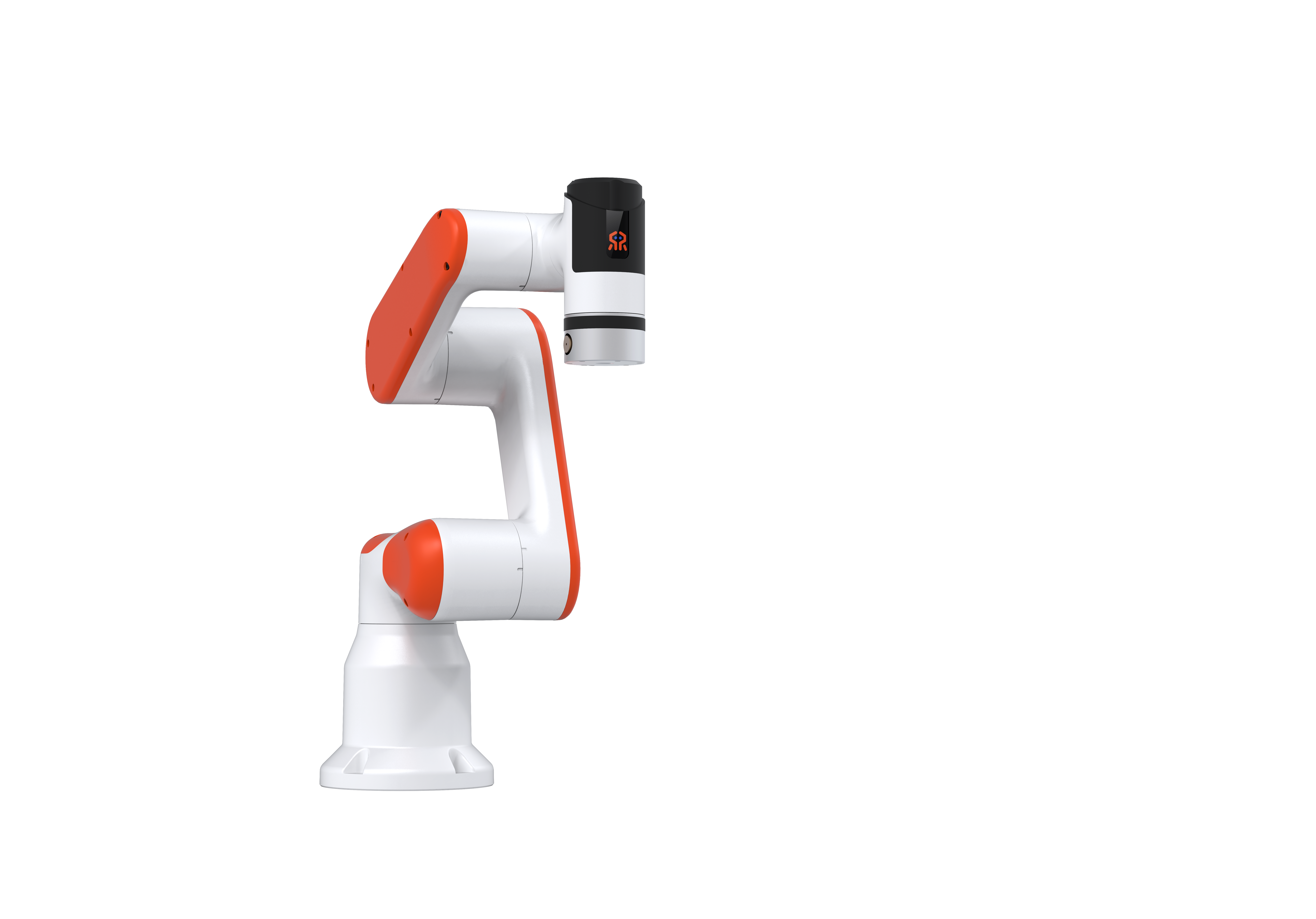

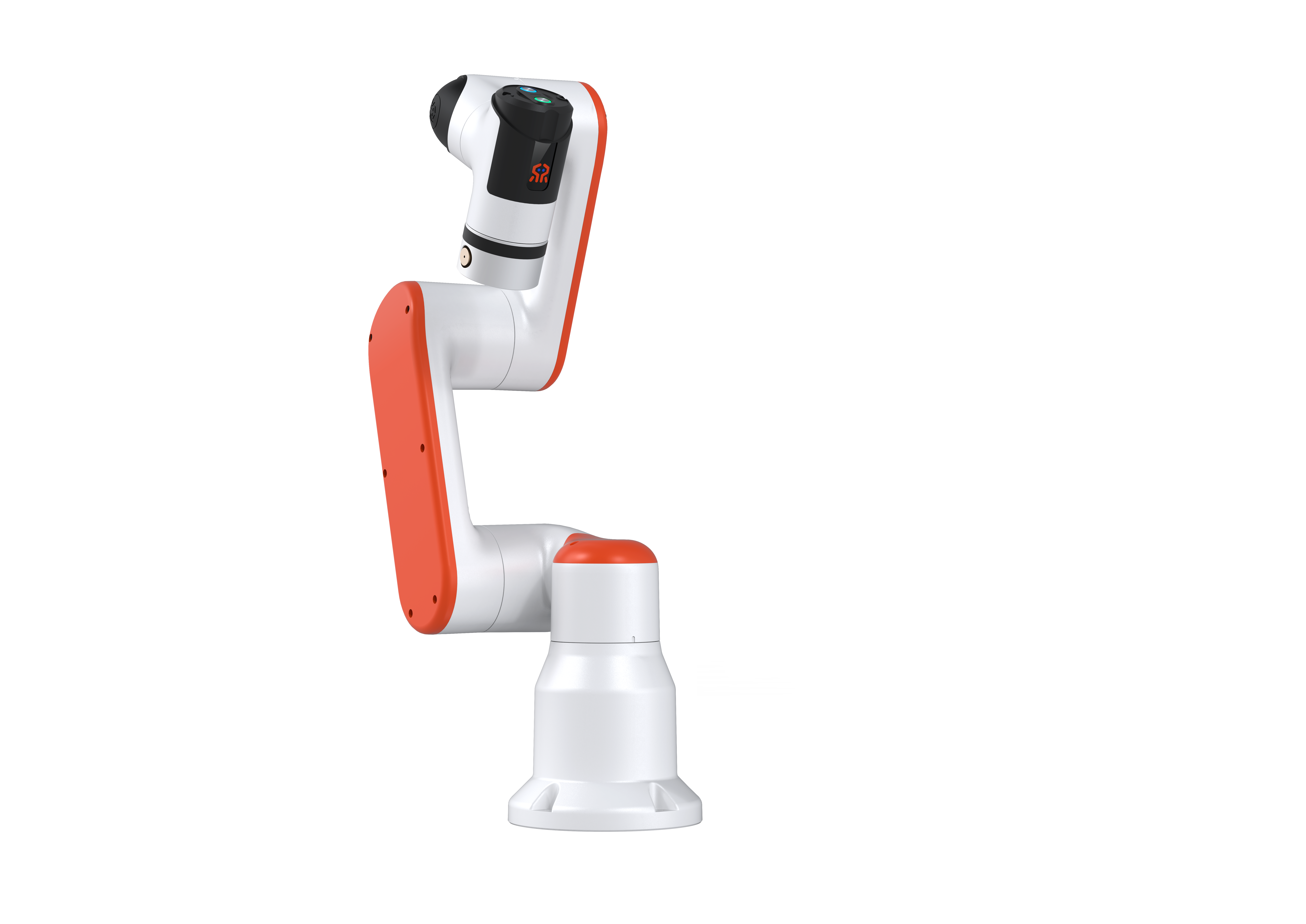

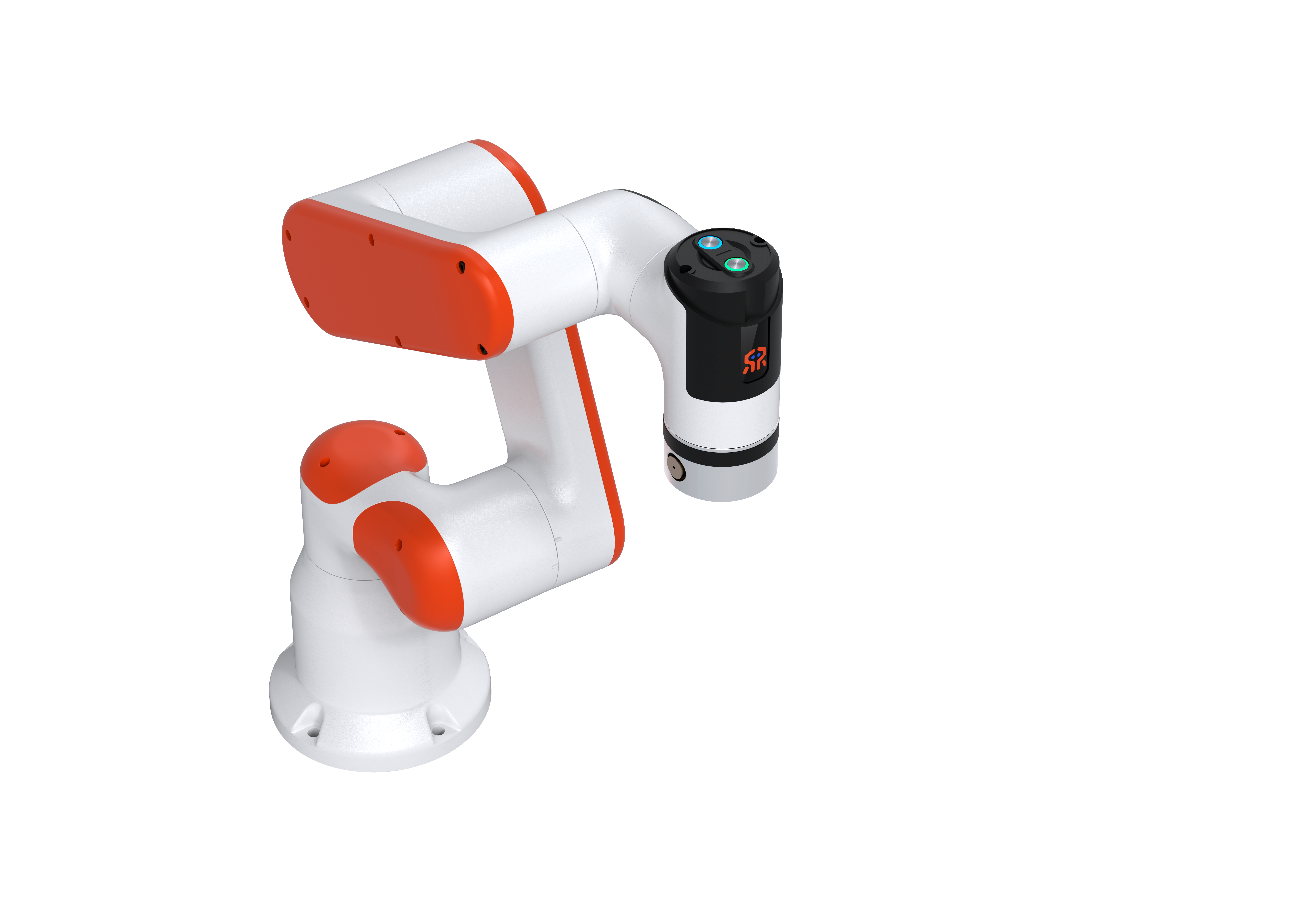

ECO62
6-DOF ULTRA-COMPACT COLLABORATIVE · 7 KG PAYLOAD · 355 MM REACH

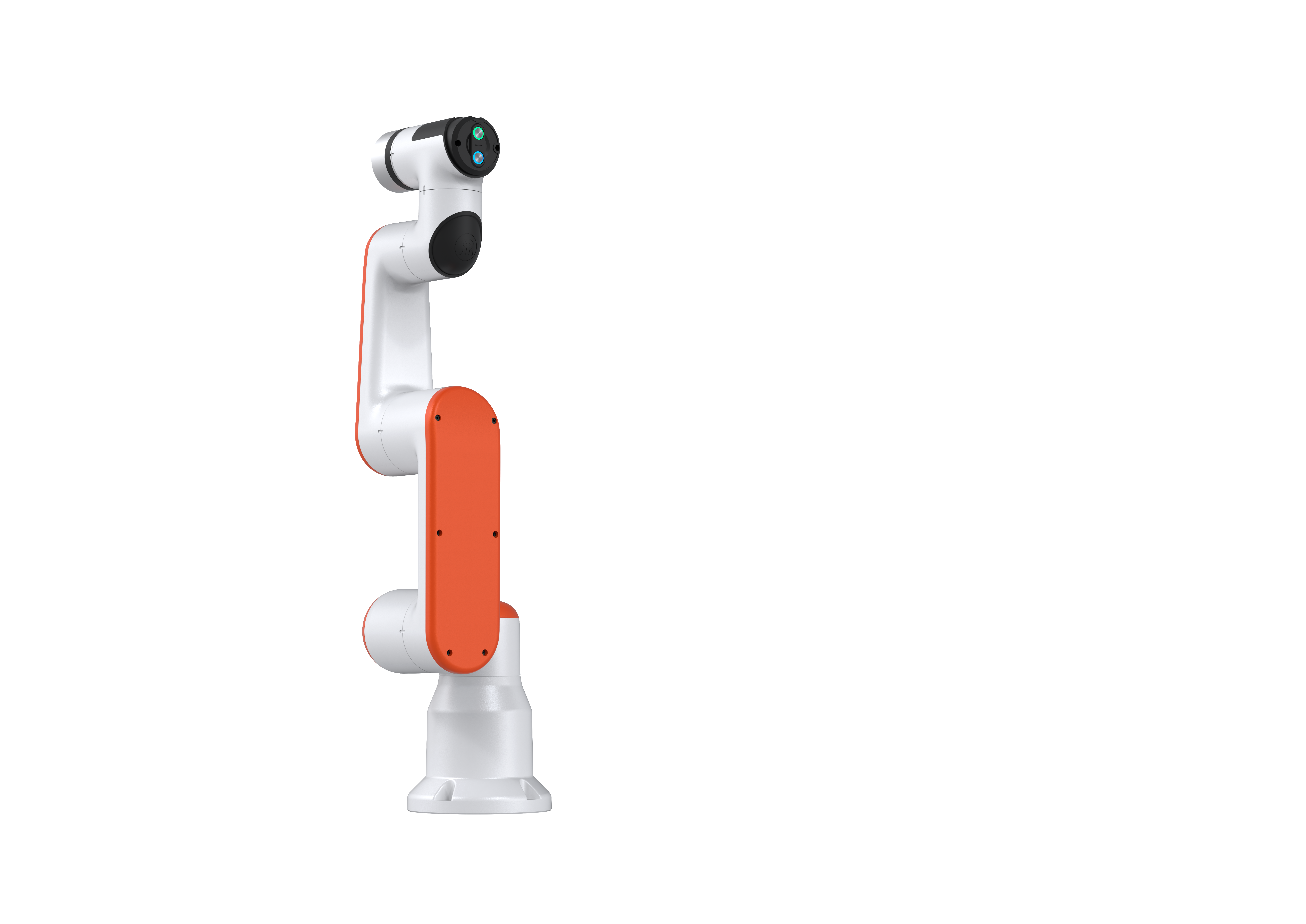

ECO62 STANDARD
6-DOF · 7 KG PAYLOAD · 355 MM REACH · 3.3 KG
STANDARD
compress
Ultra-Compact
355 mm working radius in a 3.3 kg body—the most compact and lightest arm in the entire product line.
scale
Extreme Payload Ratio
7 kg payload at only 3.3 kg self-weight—over 2:1 payload-to-weight ratio, unmatched in its class.
bolt
Low Power Draw
≤100 W typical and ≤250 W peak power consumption for energy-efficient 24/7 operation.
precision_manufacturing
High Repeatability
±0.05 mm positioning repeatability ensures consistent precision even in the compact form factor.
spa
Multi-Industry Ready
Ideal for new retail, compact production lines, massage therapy, and space-constrained service scenarios.
PERFORMANCE
Degrees of Freedom
6 DOF
Configuration
COLLABORATIVE
Working Radius
355 mm
Payload
7 kg
Net Weight
3.3 kg
Repeatability
±0.05 mm
TCP Linear Speed
<1.3 m/s
SYSTEM & INTERFACE
Joint Brake Type
MECH (J1–3) / SPRING (J4–6)
Typical Power
≤100 W
Peak Power
≤250 W
Base Diameter
Ø107 mm
Operating Temp
0–50 °C
Power Supply
DC 24V
Six-Axis Force
—
