ECO65 SERIES

6-DOF COLLABORATIVE CONFIGURATION · 2 VARIANTS · 5 KG PAYLOAD · 610 MM REACH

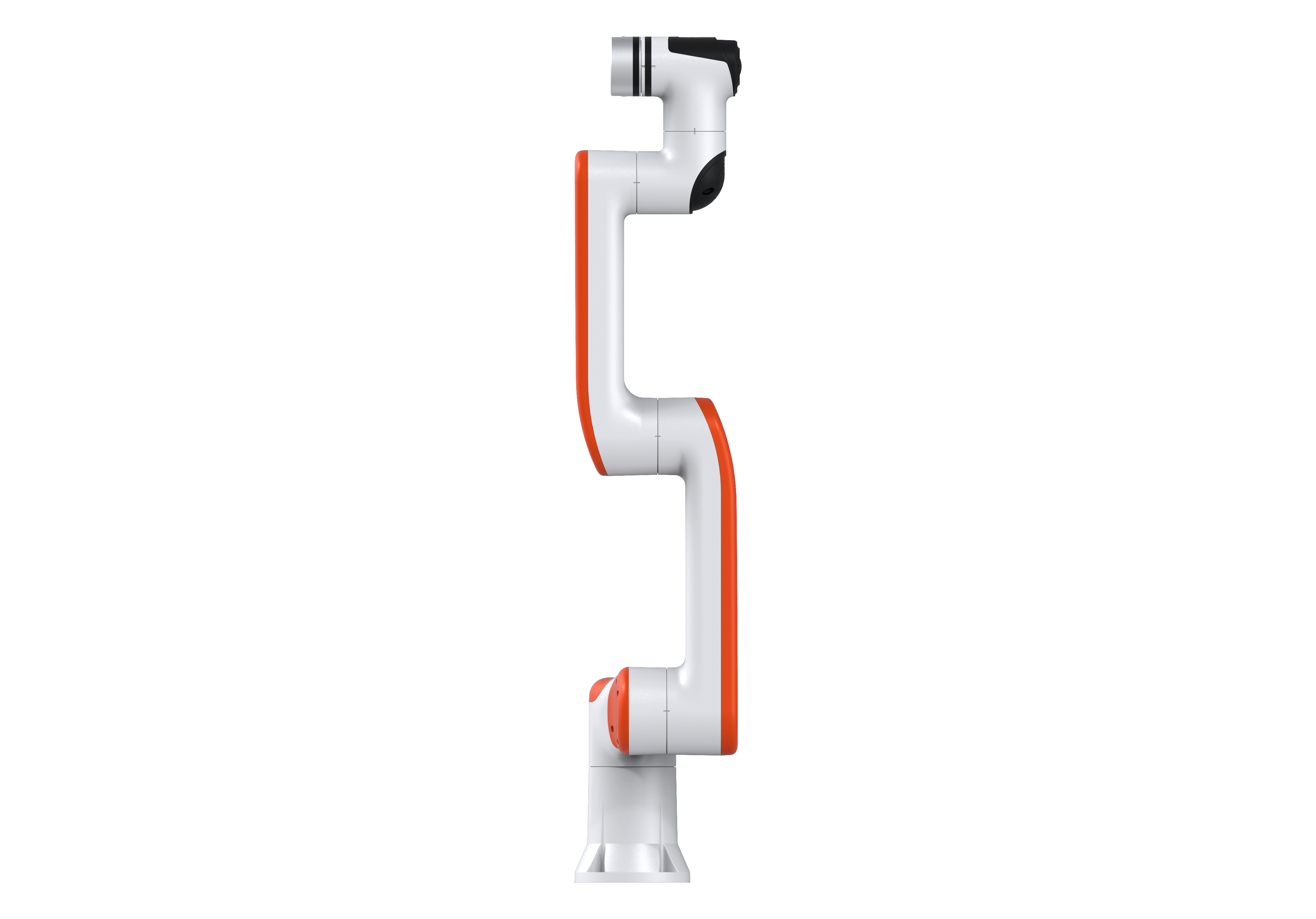

ECO65 Standard Version
ECO65 STANDARD 6-DOF · 5 KG · 610 MM REACH
STANDARD

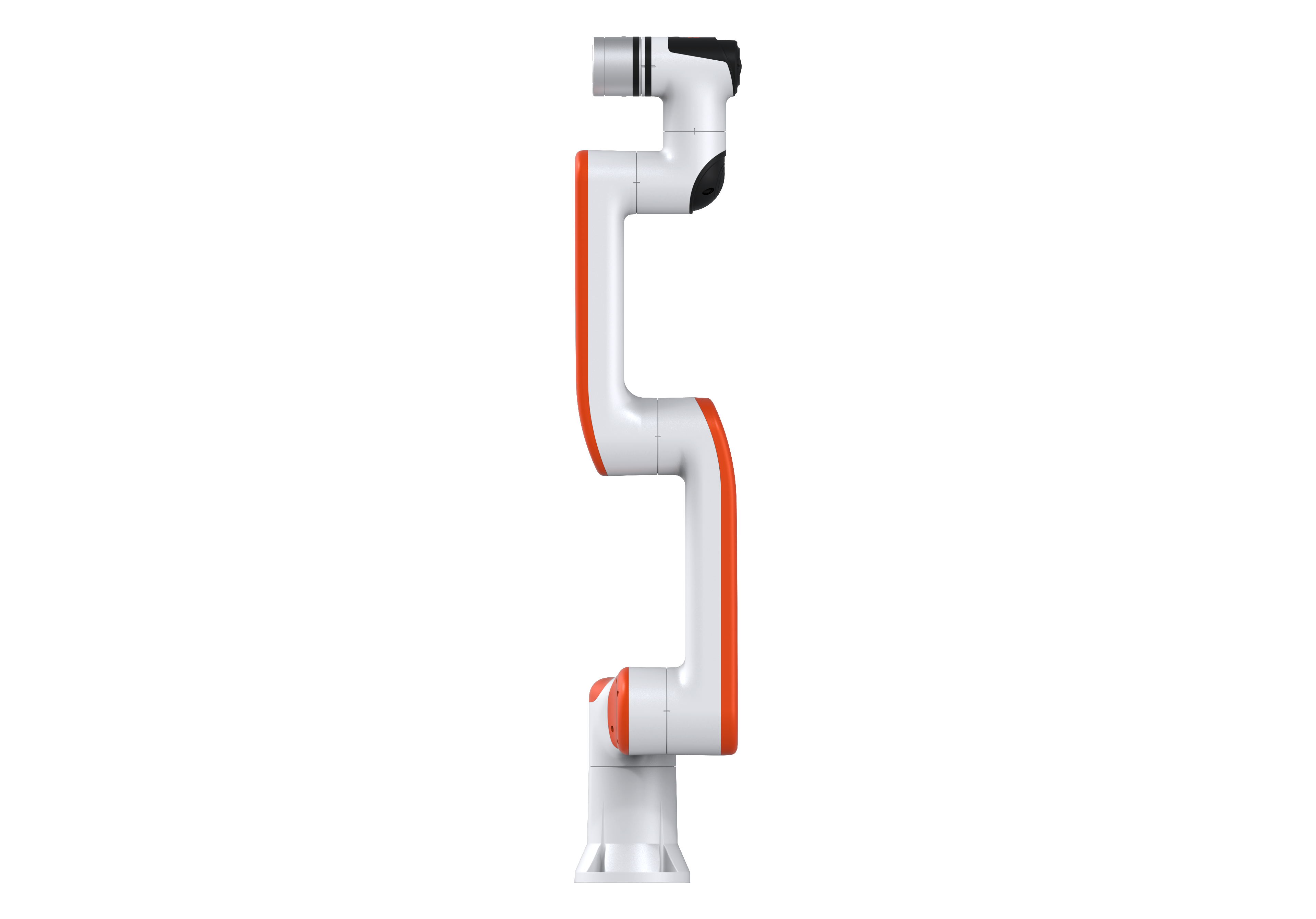

ECO65 Six-Axis Force Version
ECO65 SIX-AXIS FORCE 6-DOF · 5 KG · 610 MM REACH · F/T SENSOR
SIX-AXIS FORCE
ECO65 STANDARD VERSION

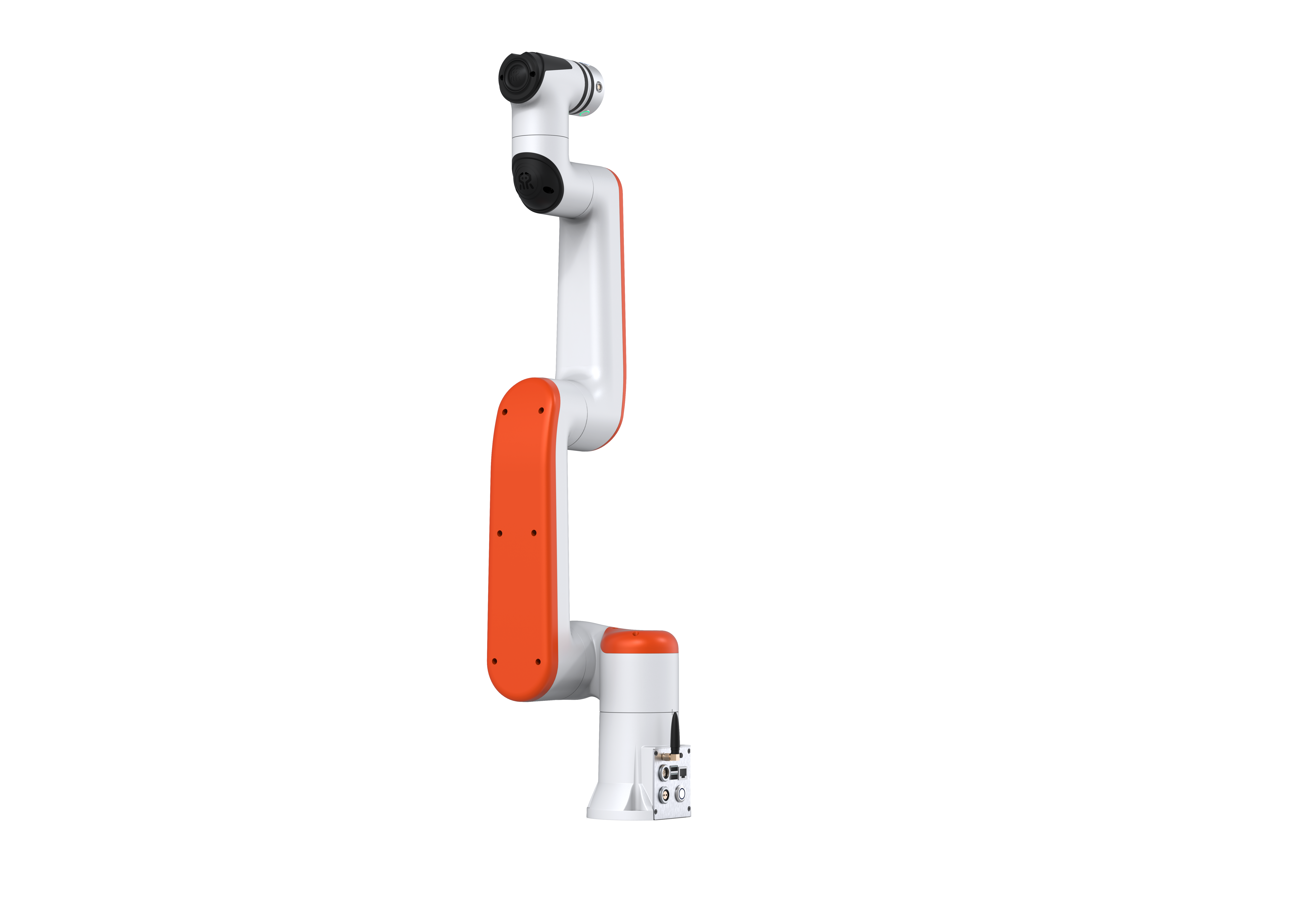

ECO65 Standard - Angle 1

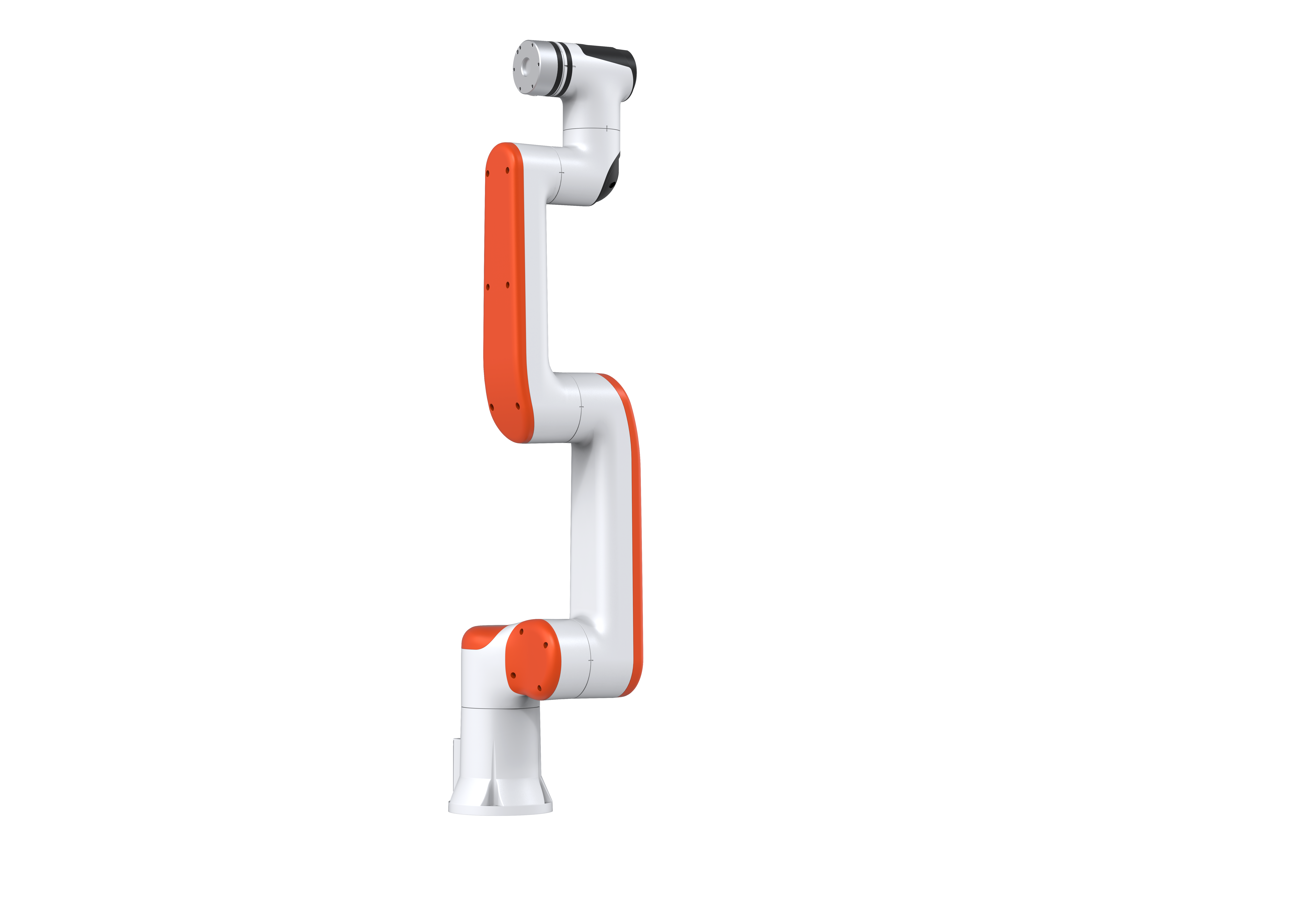

ECO65 Standard - Angle 2

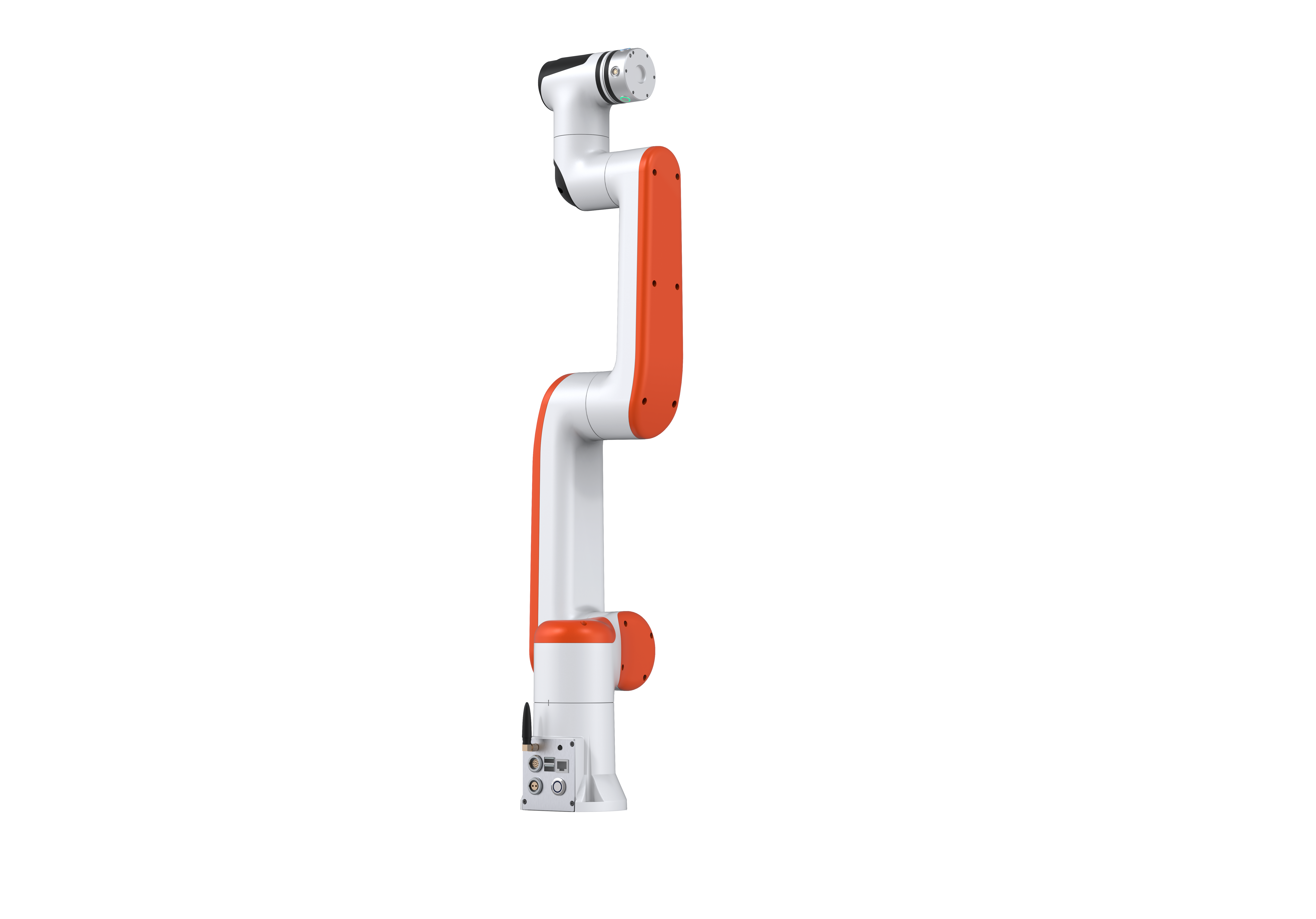

ECO65 Standard - Angle 3

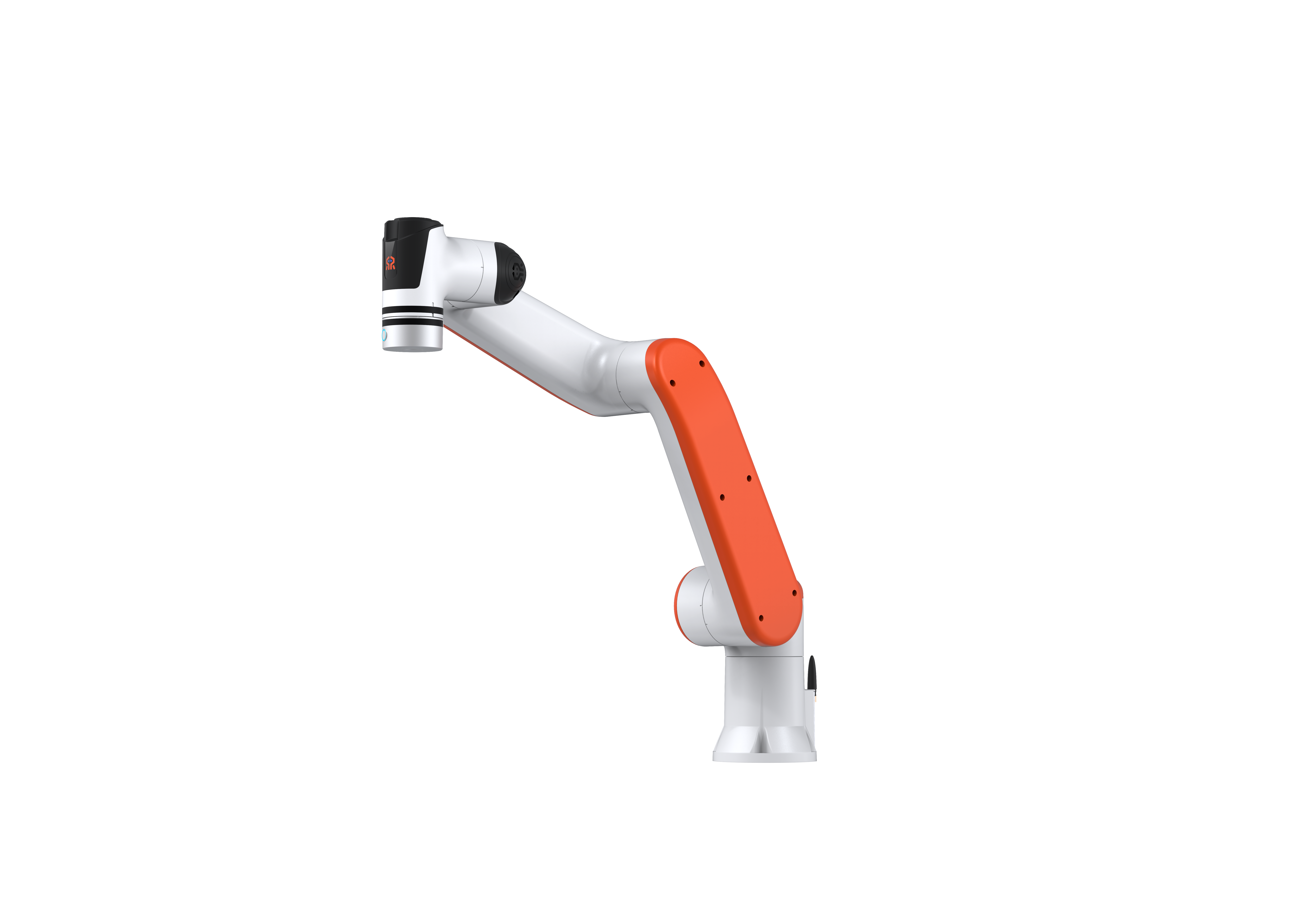

ECO65 Standard - Angle 4
ECO65 SIX-AXIS FORCE VERSION

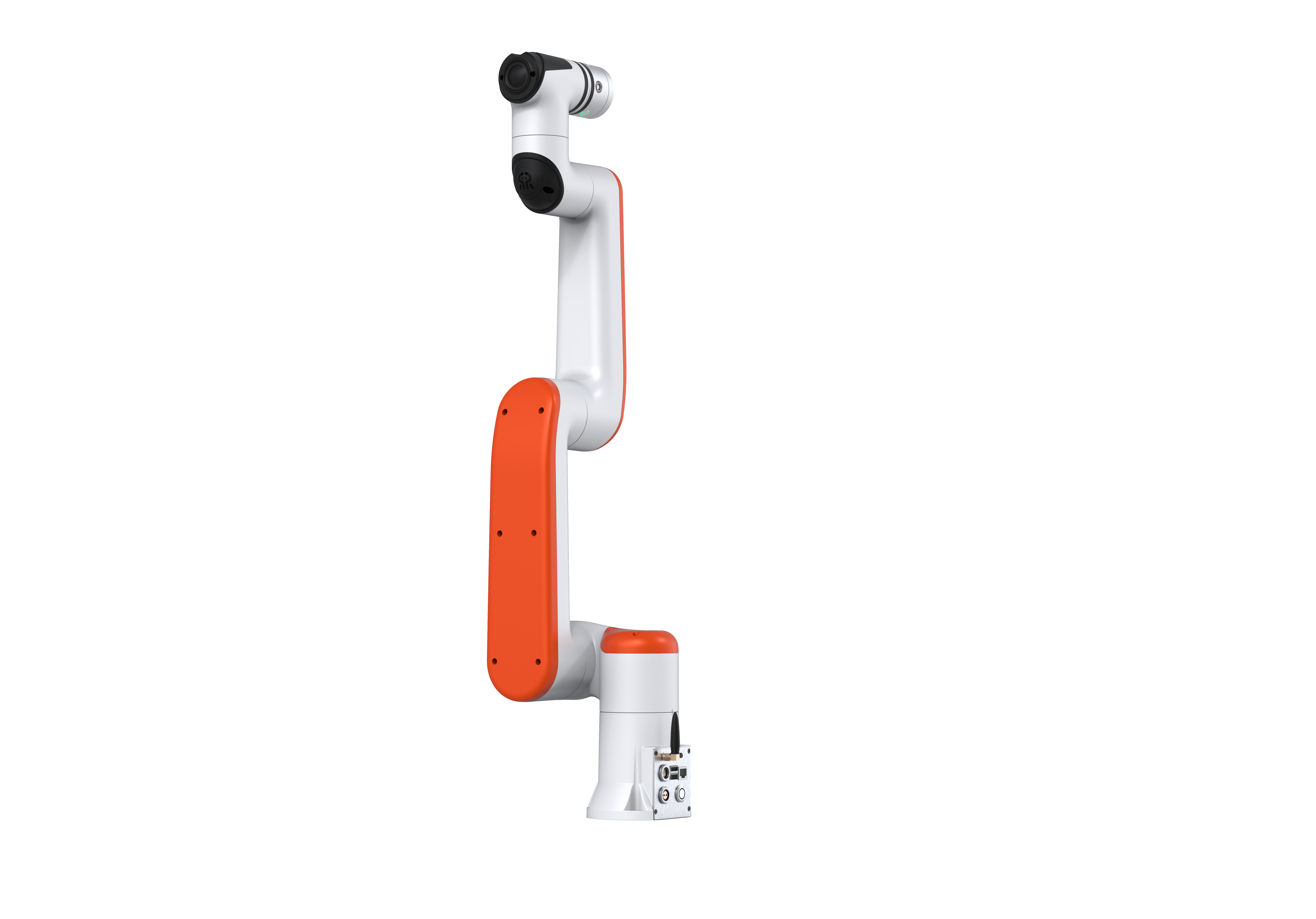

ECO65 Six-Axis Force - Angle 1

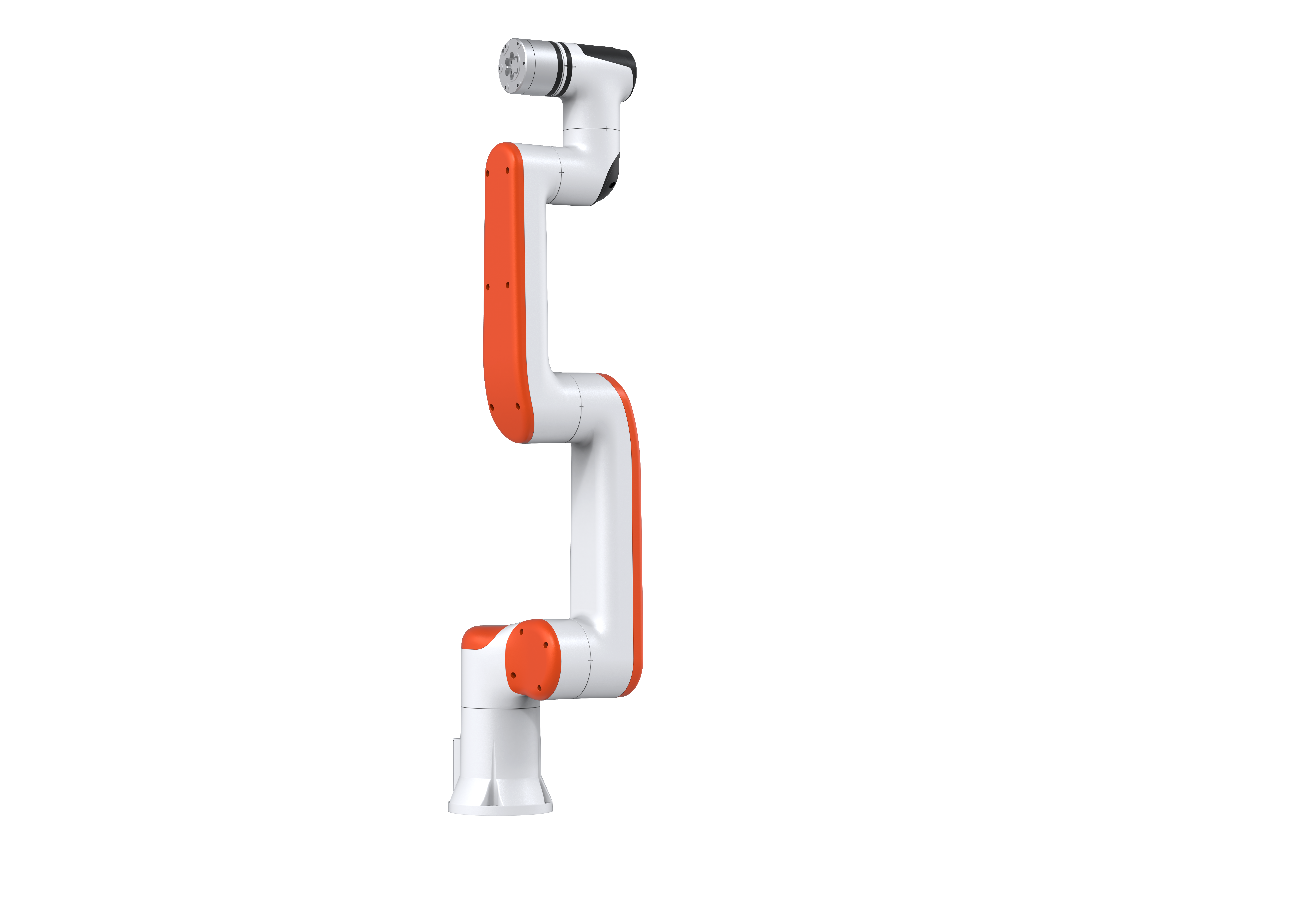

ECO65 Six-Axis Force - Angle 2

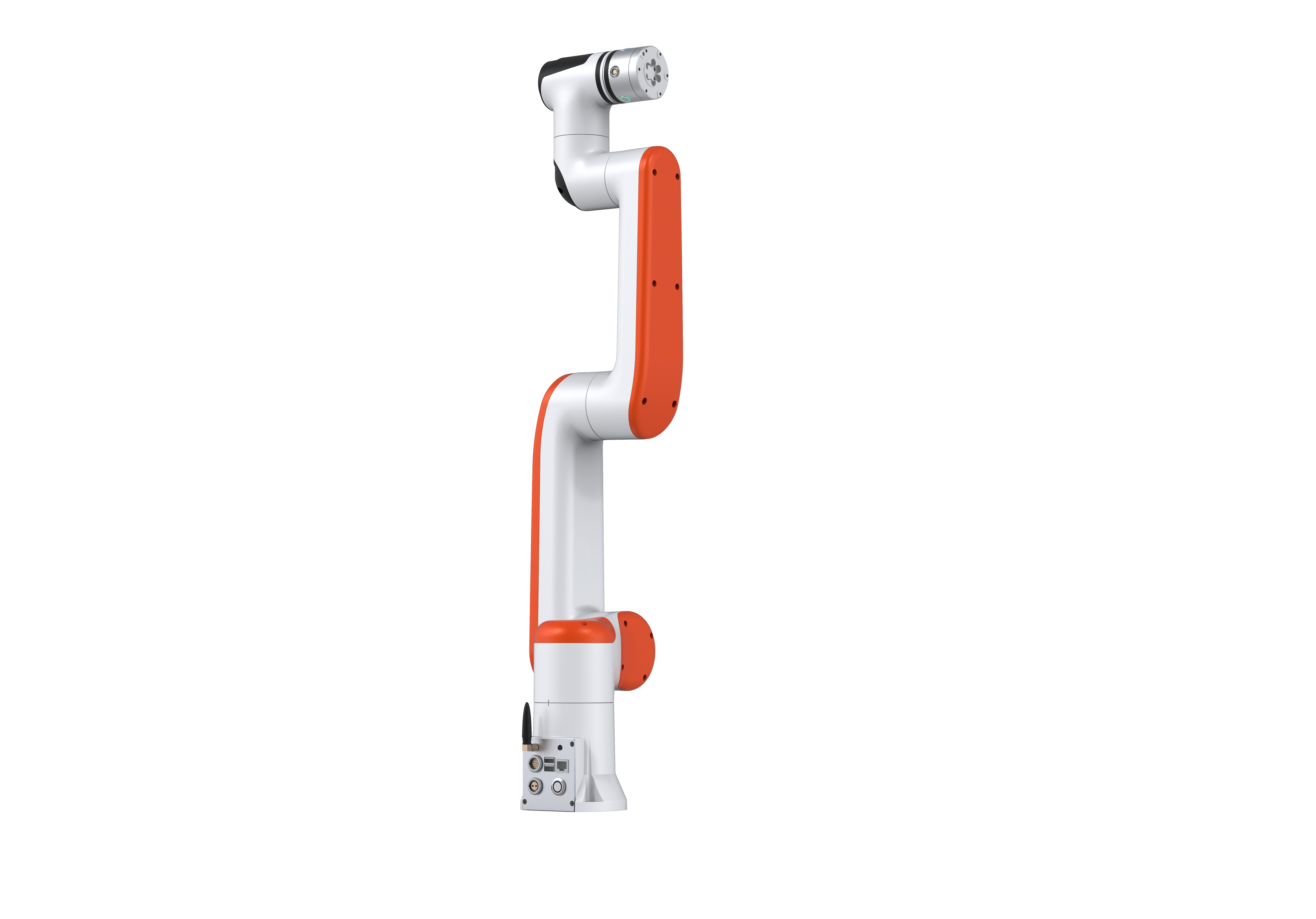

ECO65 Six-Axis Force - Angle 3
ECO65 Six-Axis Force - Angle 4

Core Engineering Advantages

lock

Full Mechanical Brakes

All joints (J1–J6) equipped with mechanical brakes for maximum holding safety and power-off position lock.

handshake

Collaborative Design

Collaborative robot configuration enables safe human-robot coworking without protective barriers.

sensors

Integrated Force Sensing

Optional built-in six-axis force/torque sensor (200N / 7N·m, ±0.5%FS) for precision contact tasks.

savings

Cost-Effective Precision

±0.05 mm repeatability with 5 kg payload in an economical ECO-tier package for rapid ROI.

spa

Multi-Industry Ready

Purpose-built for new retail, industrial production lines, massage therapy, and lifestyle service scenarios.

Technical Specifications

PARAMETER
ECO65 STANDARD
ECO65 SIX-AXIS FORCE
Degrees of Freedom
6 DOF
6 DOF
Configuration
COLLABORATIVE
COLLABORATIVE
Joint Brake Type
MECHANICAL (J1–J6)
MECHANICAL (J1–J6)
Working Radius
610 mm
610 mm
Payload
5 kg
5 kg
Net Weight
7.8 kg
7.9 kg
Repeatability
±0.05 mm
±0.05 mm
TCP Linear Speed
≤1.8 m/s
≤2.8 m/s
Typical Power
≤150 W
≤150 W
Peak Power
≤900 W
≤900 W
Base Diameter
Ø107 mm
Ø107 mm
Operating Temp
0–45 °C
0–45 °C
Six-Axis Force Range
—
200N / 7N·m
Six-Axis Force Accuracy
—
±0.5%FS
Power Supply
DC 24V
DC 24V
