ECO63 SERIES

6-DOF COLLABORATIVE EXTENDED REACH · 2 VARIANTS · 3 KG PAYLOAD · 900 MM REACH

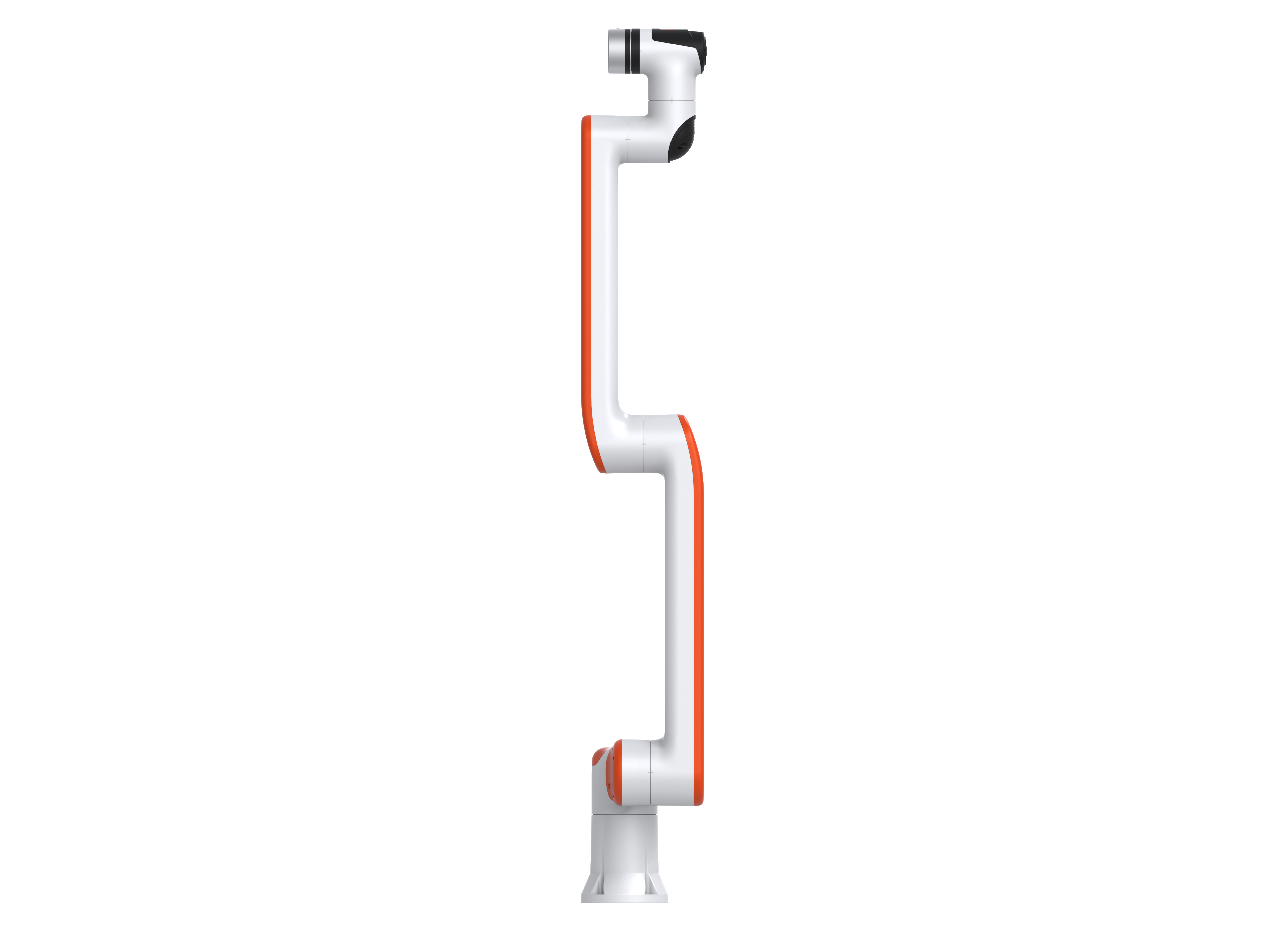

ECO63 Standard Version
ECO63 STANDARD 6-DOF · 3 KG · 900 MM REACH
STANDARD

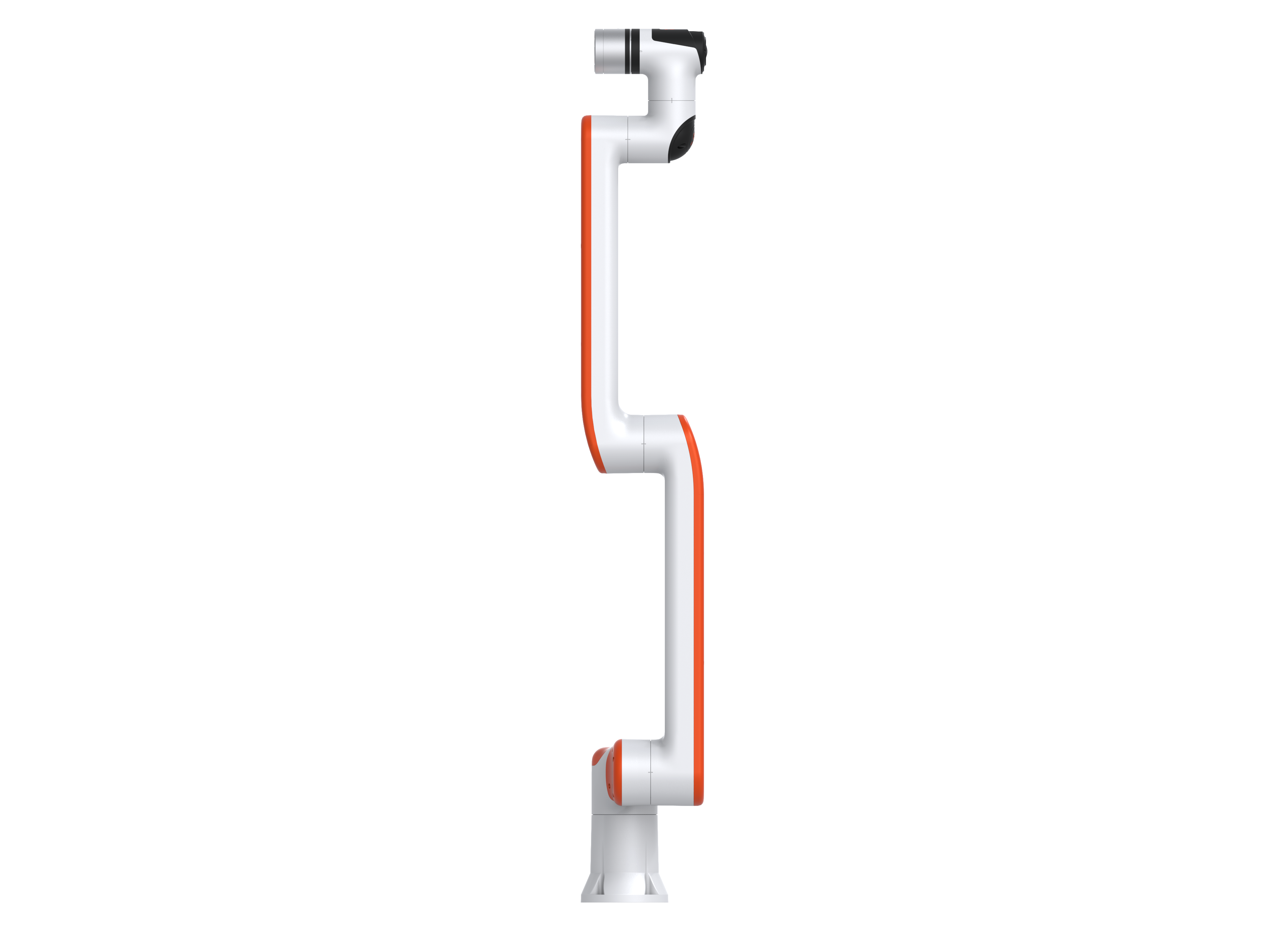

ECO63 Six-Axis Force Version
ECO63 SIX-AXIS FORCE 6-DOF · 3 KG · 900 MM REACH · F/T SENSOR
SIX-AXIS FORCE
ECO63 STANDARD VERSION
ECO63 Standard - Angle 1

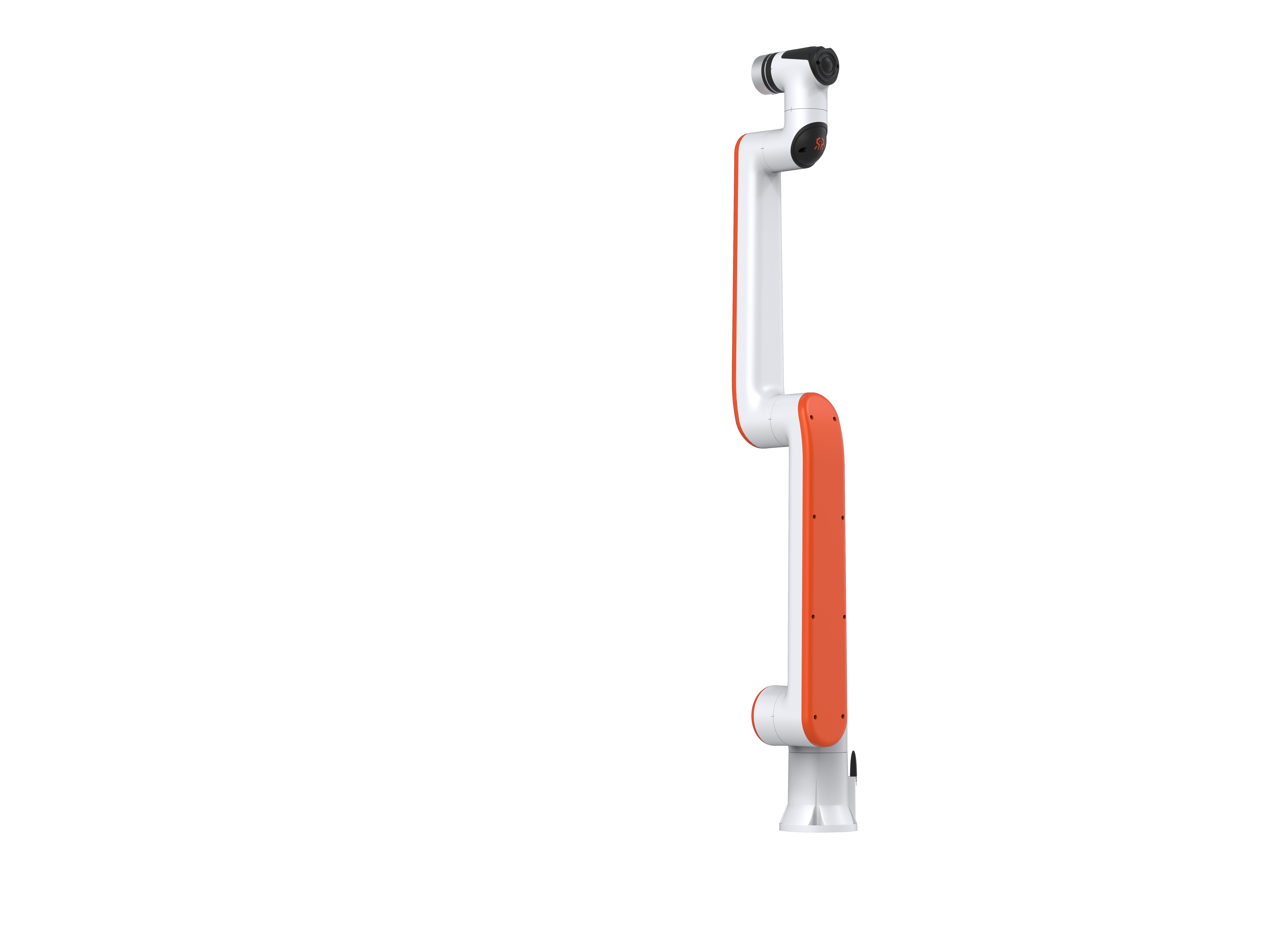

ECO63 Standard - Angle 3

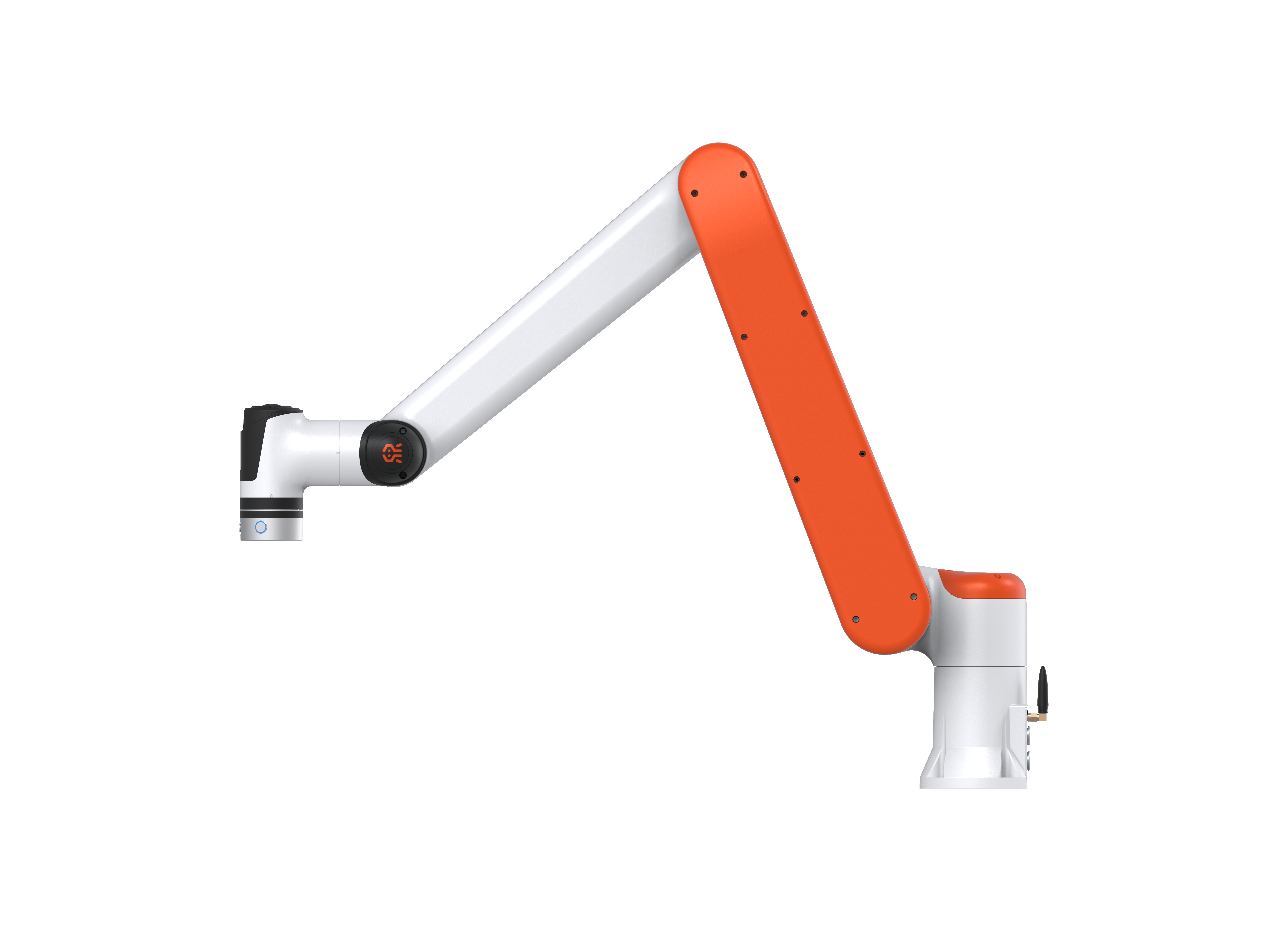

ECO63 Standard - Angle 4

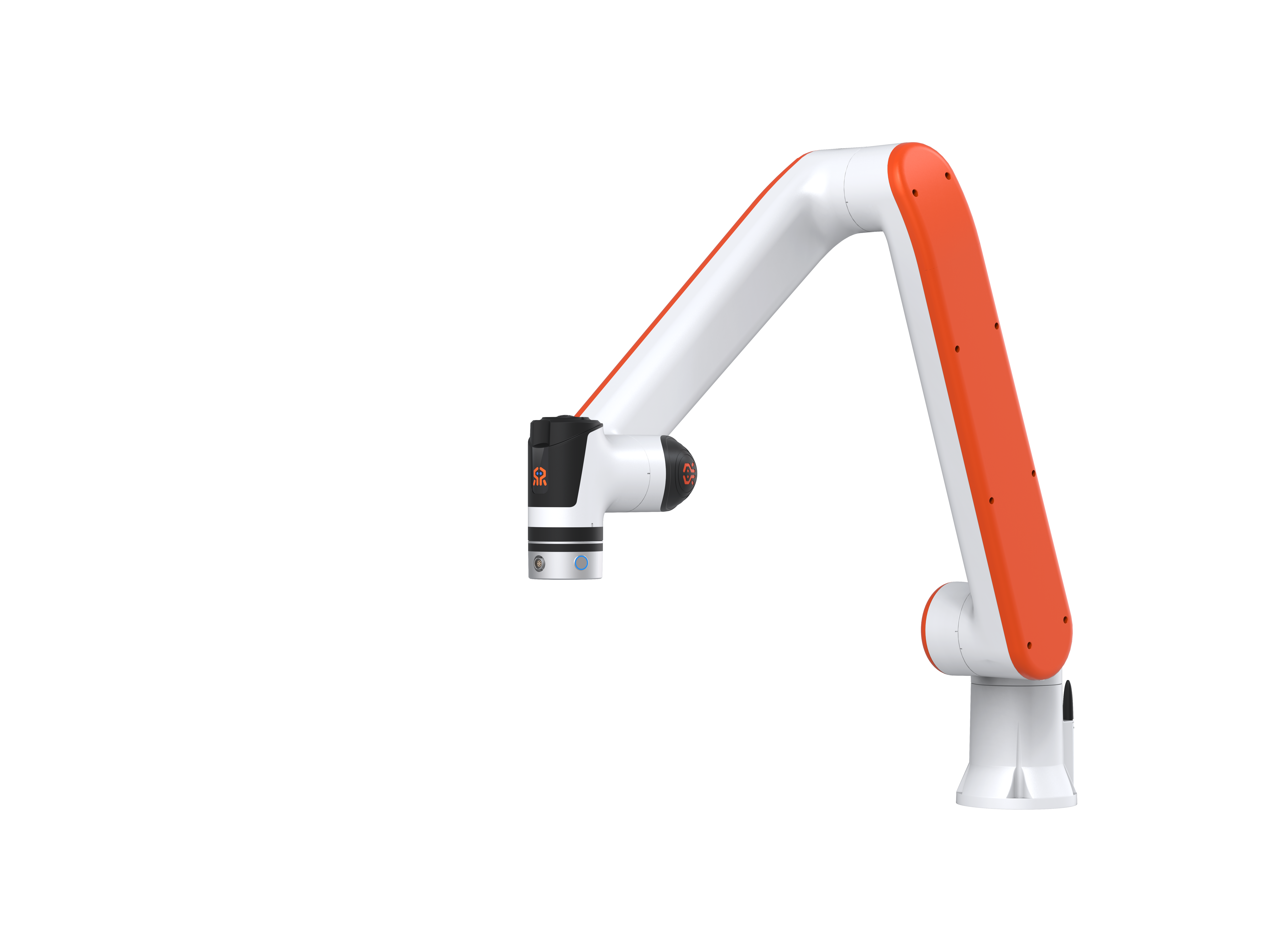

ECO63 Standard - Angle 6
ECO63 SIX-AXIS FORCE VERSION

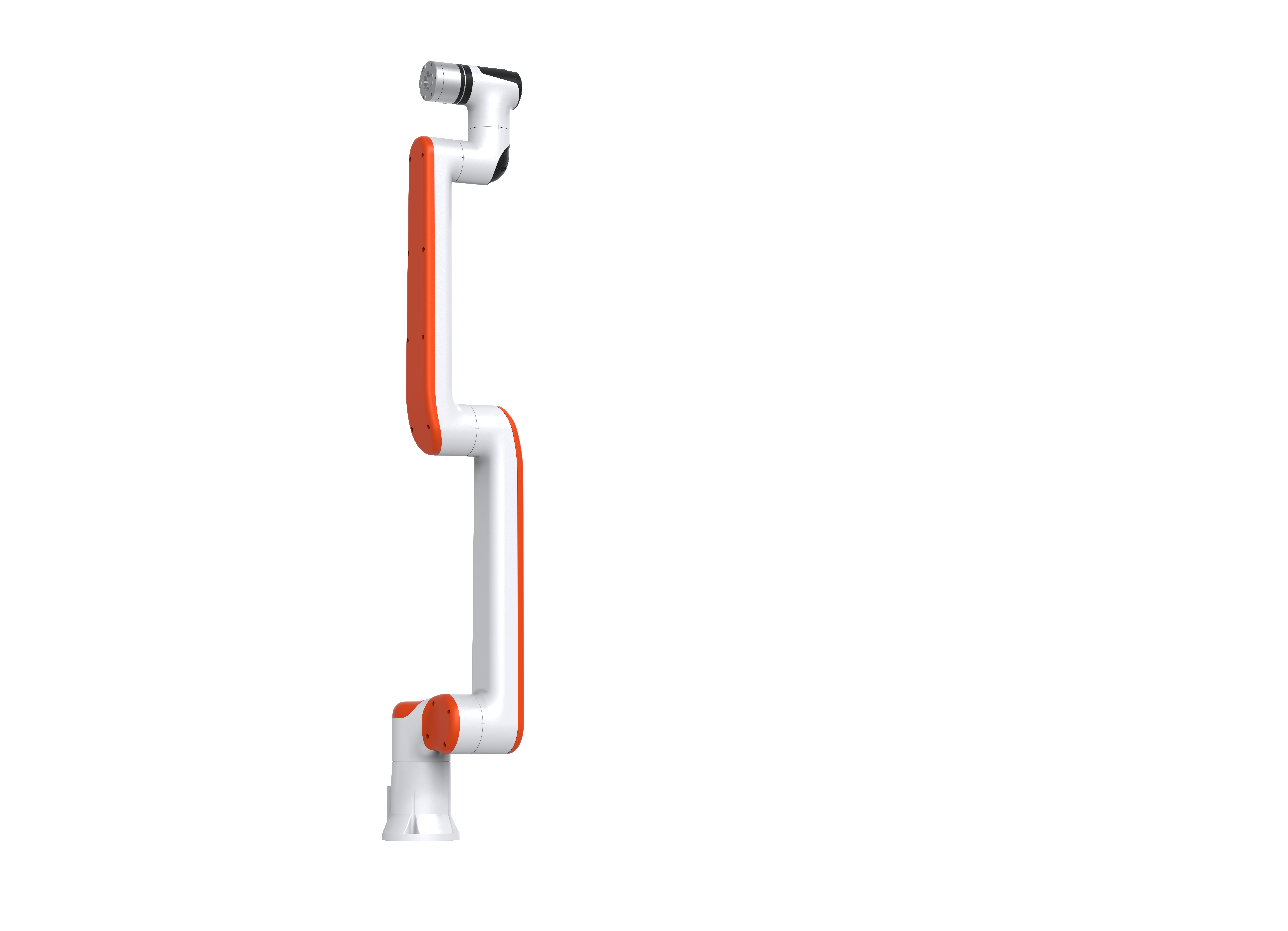

ECO63 Six-Axis Force - Angle 1

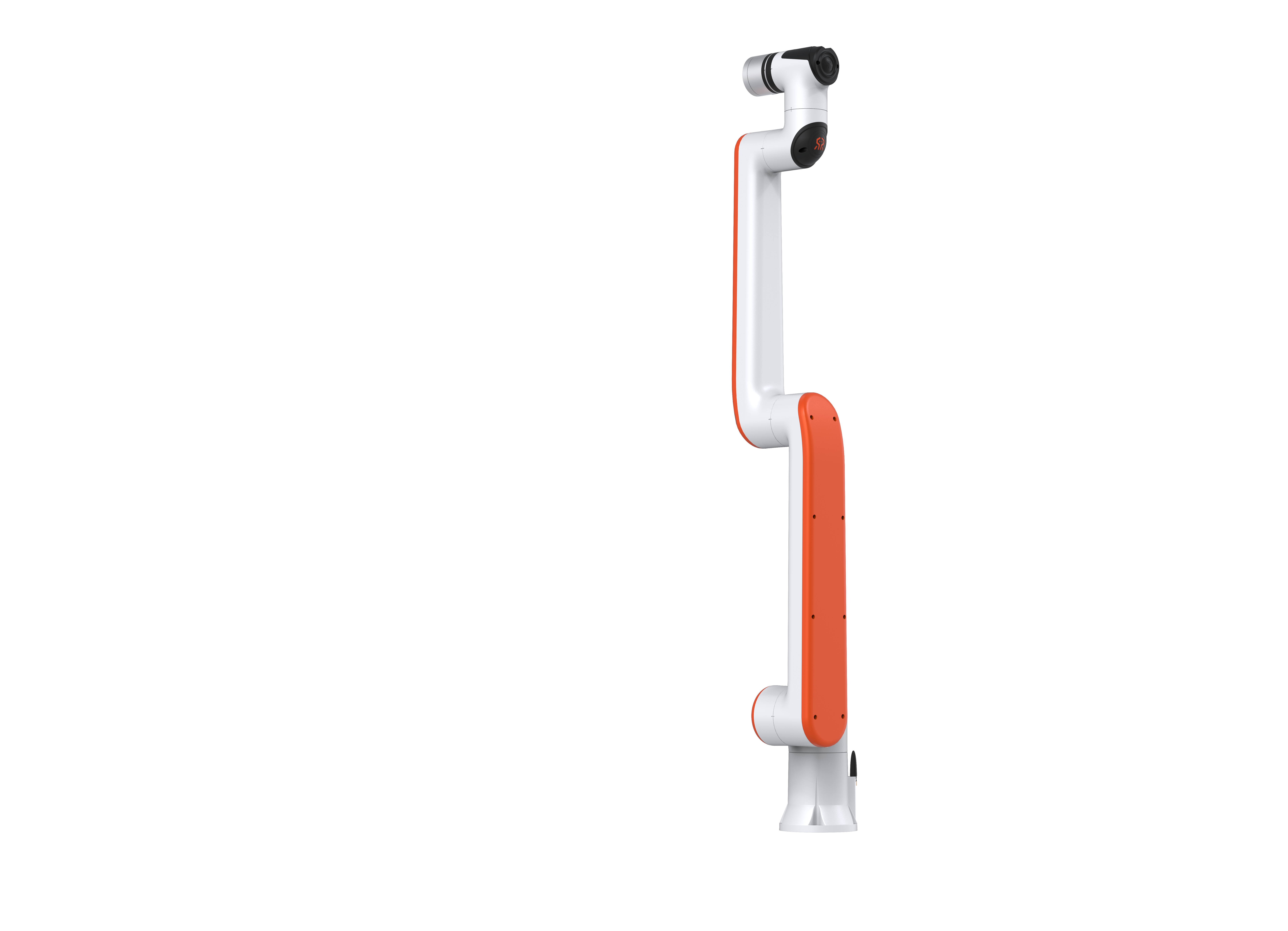

ECO63 Six-Axis Force - Angle 3
ECO63 Six-Axis Force - Angle 4

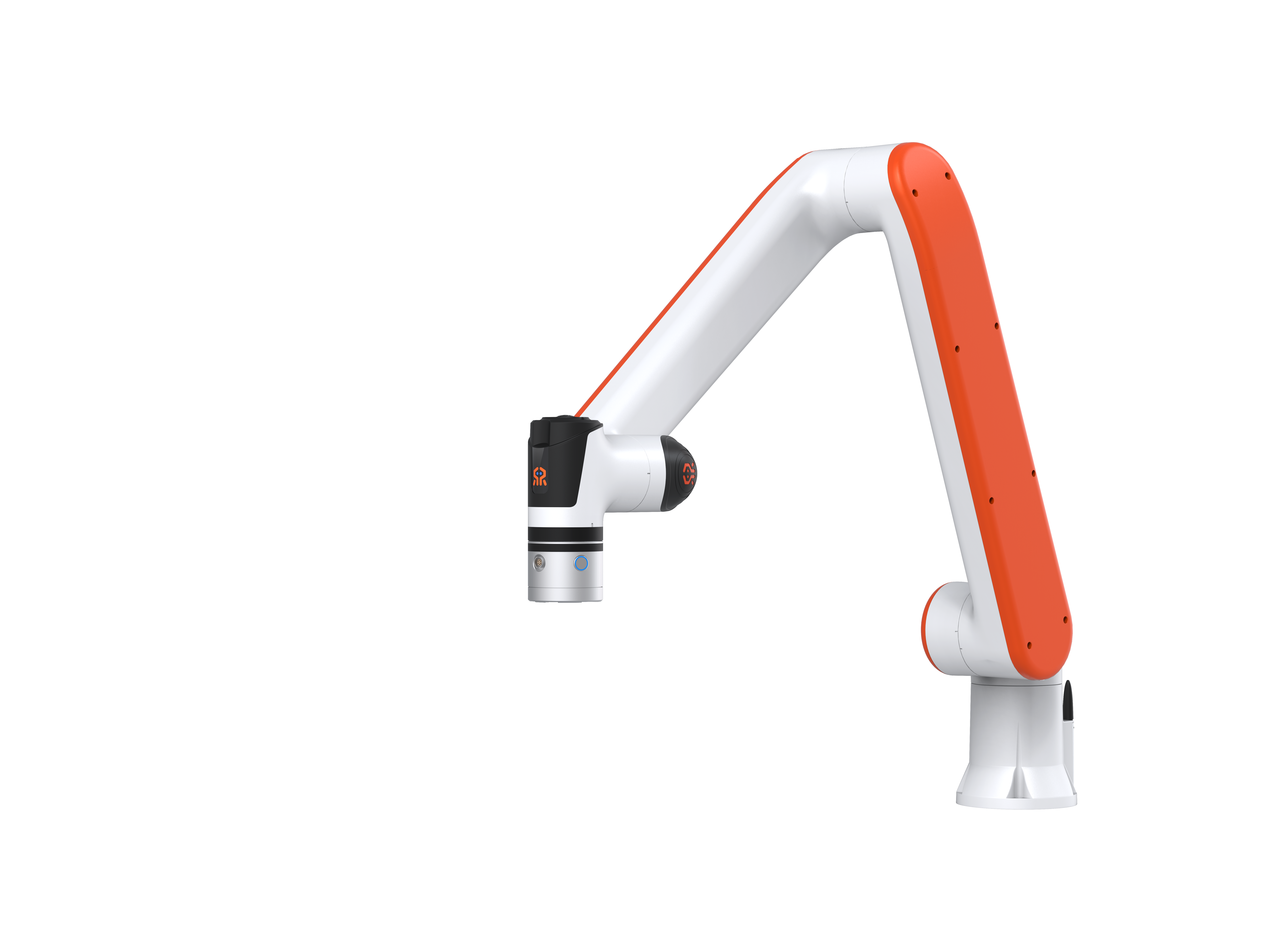

ECO63 Six-Axis Force - Angle 6

Core Engineering Advantages

open_in_full

Extended Cobot Reach

900 mm working radius in a collaborative configuration—the longest reach in the ECO series for wide-area tasks.

speed

High-Speed TCP

TCP linear speed up to 2.8 m/s on both variants for rapid pick-and-place and high-throughput operations.

sensors

Integrated Force Sensing

Optional built-in six-axis force/torque sensor (200N / 7N·m, ±0.5%FS) for precision contact tasks.

handshake

Collaborative Safe

Collaborative robot configuration enables safe human-robot coworking in shared workspace environments.

spa

Multi-Industry Ready

Purpose-built for new retail, industrial production lines, massage therapy, and lifestyle service scenarios.

Technical Specifications

PARAMETER
ECO63 STANDARD
ECO63 SIX-AXIS FORCE
Degrees of Freedom
6 DOF
6 DOF
Configuration
COLLABORATIVE
COLLABORATIVE
Joint Brake Type
MECH (J1–3) / SPRING (J4–6)
MECH (J1–3) / SPRING (J4–6)
Working Radius
900 mm
900 mm
Payload
3 kg
3 kg
Net Weight
9.5 kg
9.6 kg
Repeatability
±0.05 mm
±0.05 mm
TCP Linear Speed
≤2.8 m/s
≤2.8 m/s
Typical Power
≤150 W
≤150 W
Peak Power
≤900 W
≤900 W
Base Diameter
Ø107 mm
Ø107 mm
Operating Temp
0–50 °C
0–50 °C
Six-Axis Force Range
—
200N / 7N·m
Six-Axis Force Accuracy
—
±0.5%FS
Power Supply
DC 24V
DC 24V
